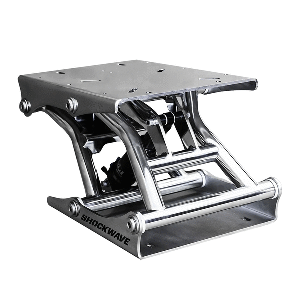

Shockwave Seats Shockwave S5-SS Suspension Base - Stainless Steel - SW-09108 33.4 lb

Shockwave Seats Shockwave S5-SS Suspension Base - Stainless Steel - SW-09108

S5-SS Suspension Base - Stainless Steel The Shockwave S5-SS stainless steel suspension base is the latest addition to the S5 product line. Welded construction using electropolished 316 stainless steel to last a lifetime. The Shockwave S5-SS is best suited for saltwater environments with high salinity, humidity, and moderate sea conditions. Fitted with a FOX Rhythm air-sprung shock with adjustable rebound and compression, suspension travel is 4-inch vertical and 1.5-inch forward, using a four-link forward action, mitigating deceleration associated with wave impact. A shock pump with a pressure gauge is included with your purchase at no extra cost. Features: Designed and manufactured in Canada Custom-tuned and valved marine FOX Rhythm, air spring and shock with adjustable rebound and compression Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts Electropolished Welded 316 Stainless Steel 4-Link Forward Action Minimal parts count and simple construction Easy to mount and adapt to current seating Best for Professional Mariners Use in Heavy Seas Vessel Application: The S5-SS suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-SS can be fitted to almost any boat and any seat.

Specifications

Product Resources

• Installation Guide (pdf) Url
