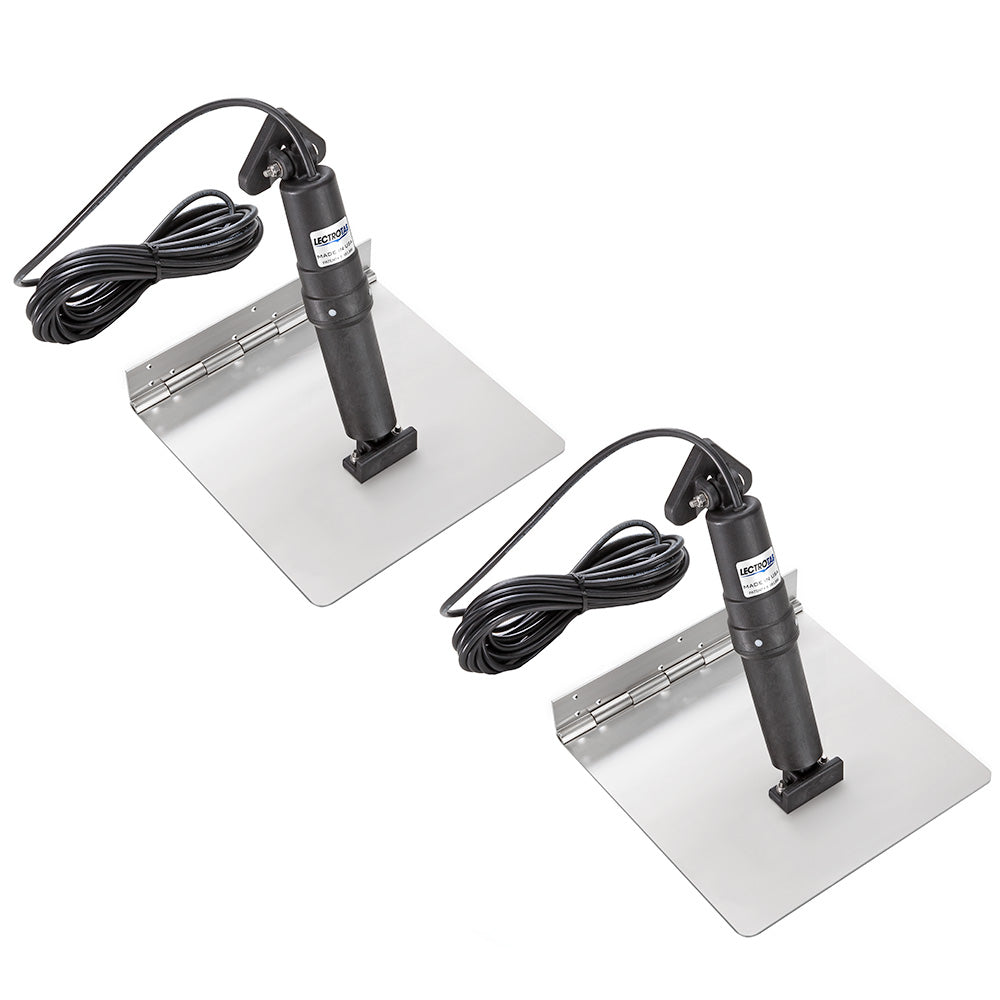

![Lectrotab XKA Stainless Steel Trim Tab - 9 x 12 [XKA9X12]](http://www.bgamarine.com/cdn/shop/files/96028XL.jpg?v=1706430733&width=1500)
Lectrotab XKA Stainless Steel Trim Tab - 9 x 12 [XKA9X12] 17.0 lb
Lectrotab XKA Stainless Steel Trim Tab - 9 x 12 [XKA9X12] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Lectrotab XKA Stainless Steel Trim Tab - 9 x 12 [XKA9X12]
XKA Stainless Steel Trim Tab - 9 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. Ā All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. Ā This design eliminates the need for welding.Ā
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. Ā The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. Ā The actuator assembly is packaged in a non-metallic permanently sealed housing. Ā No components need to be installed inside the boat.Ā
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. Ā The actuator incorporates either a standard or low profile transom mounting bracket.Ā
*Control switch not includedĀ
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
- Boat Length - 16' to 25' (5 to 7.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless SteelĀ
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length Ā - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
In the Box:
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction ManualĀ
*Sold as an IndividualĀ
Specifications:
- Actuator Type: Electro-Mechanical
- Construction: Stainless Steel
- Box Dimensions: 6"H x 15"W x 15"L WT: 17 lbs
- UPC: 850046155338
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
