Victron Energy  |  Barcode: 8719076062967

Victron Lynx Power-In Class-T M10 Terminals [LYN060404010] 6.6 lb

$170.00 $200.00
Shipping calculated at checkout.

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

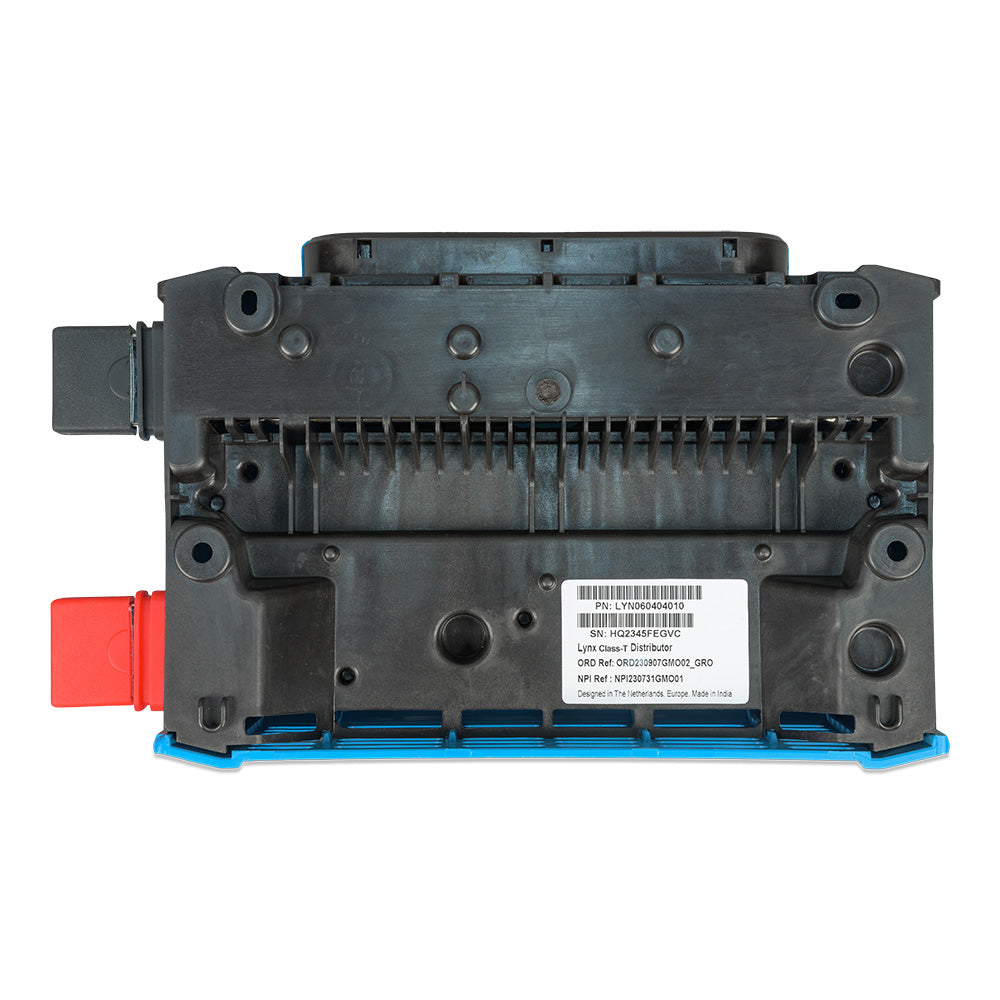

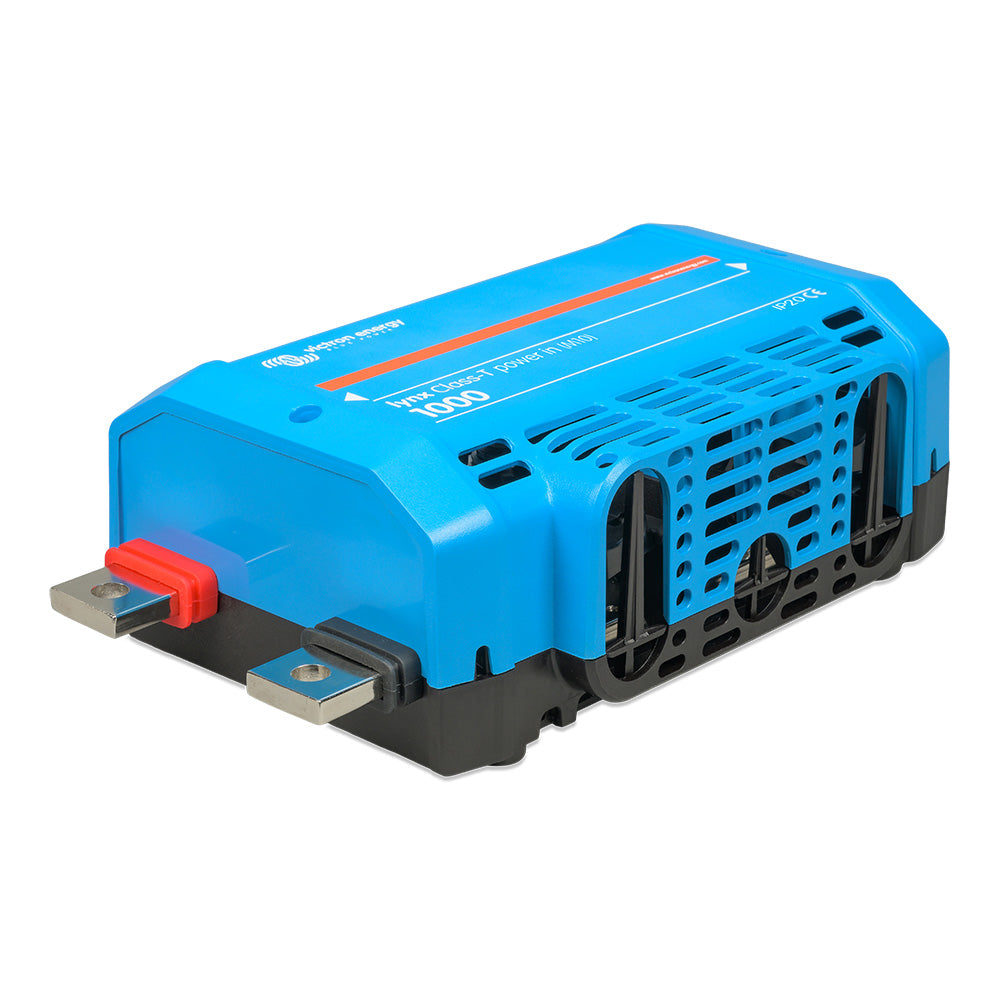

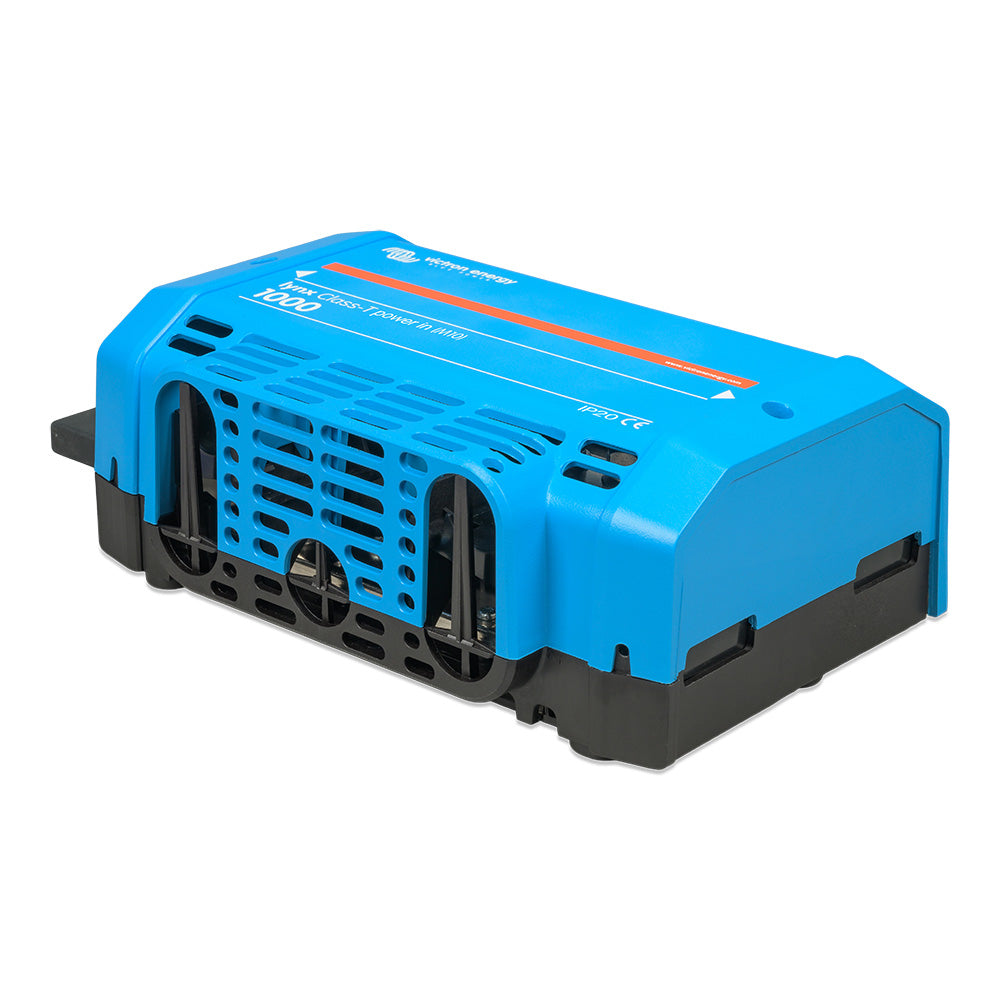

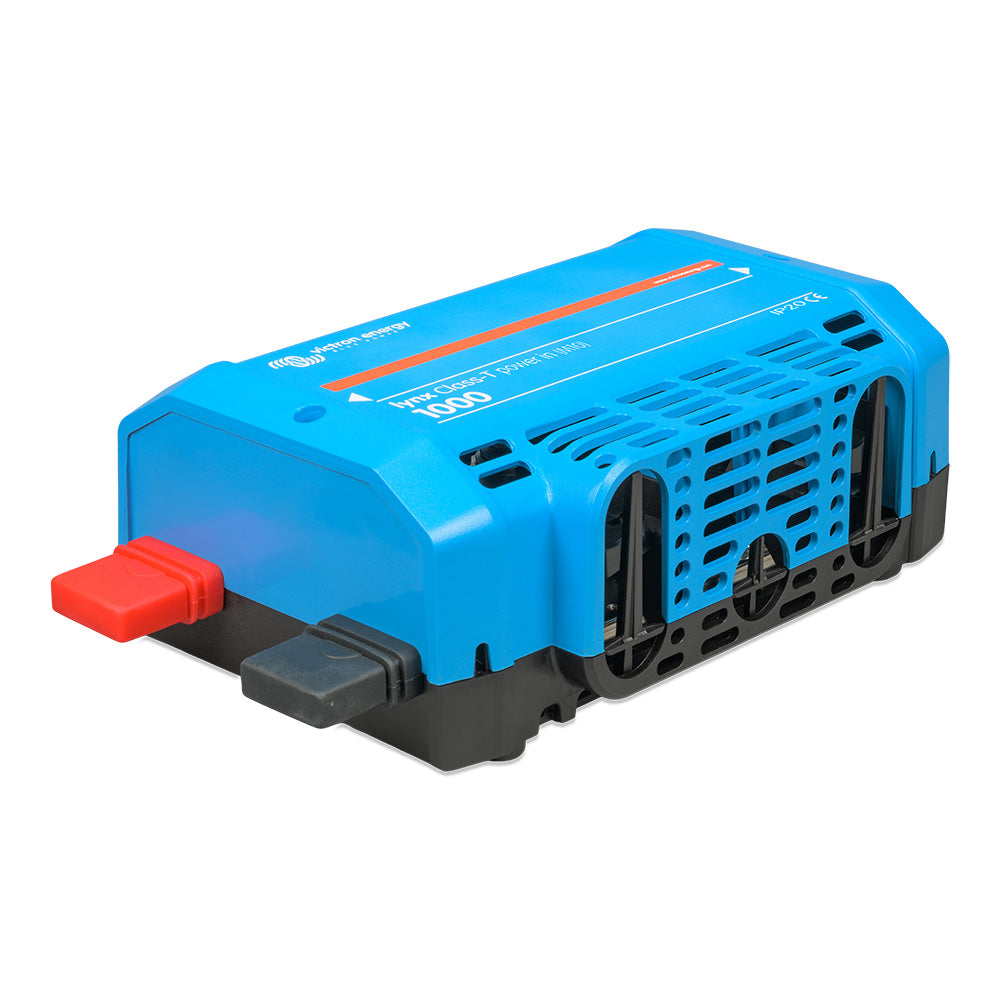

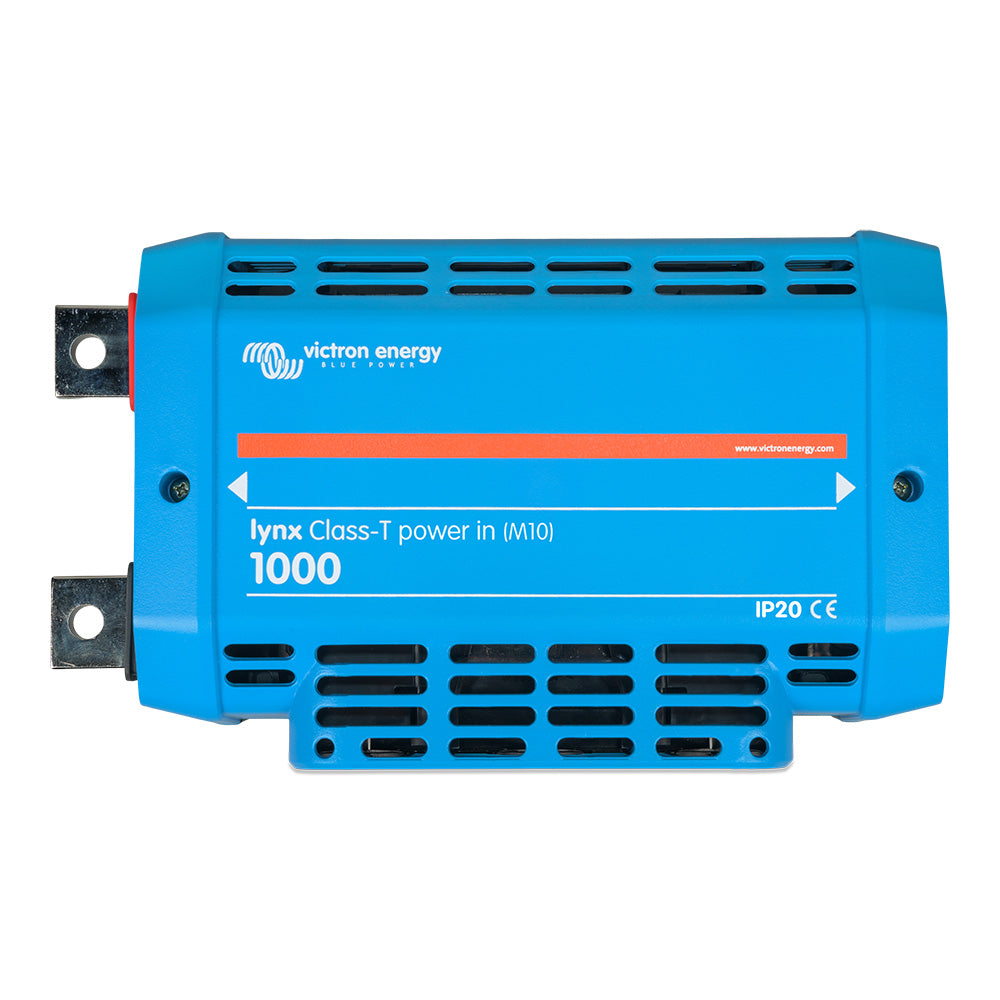

Lynx Power-In Class-T M10 Terminals

The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Specifications

Power:

  • Voltage Range: 9 - 60Vdc
  • Current Rating: 1000Adc continuous
  • Connections: M10
  • Busbar: 3/8”

Physical:

  • Enclosure Material: ABS
  • Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
  • Unit Weight: 2.1 kg
  • Busbar Material: Tinned copper
  • Busbar Dimensions (H x W): 8 x 30mm

Environmental:

  • Operating Temperature Range: -40°C to +60°
  • Storage Temperature Range: -40°C to +60°
  • Humidity: Max. 95% (non-condensing)
  • Protection Class: IP20
Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • Fuse Type: Class T
  • Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs
  • UPC: 8719076062967

Quick Guide (pdf)
Owner's Manual (pdf)
