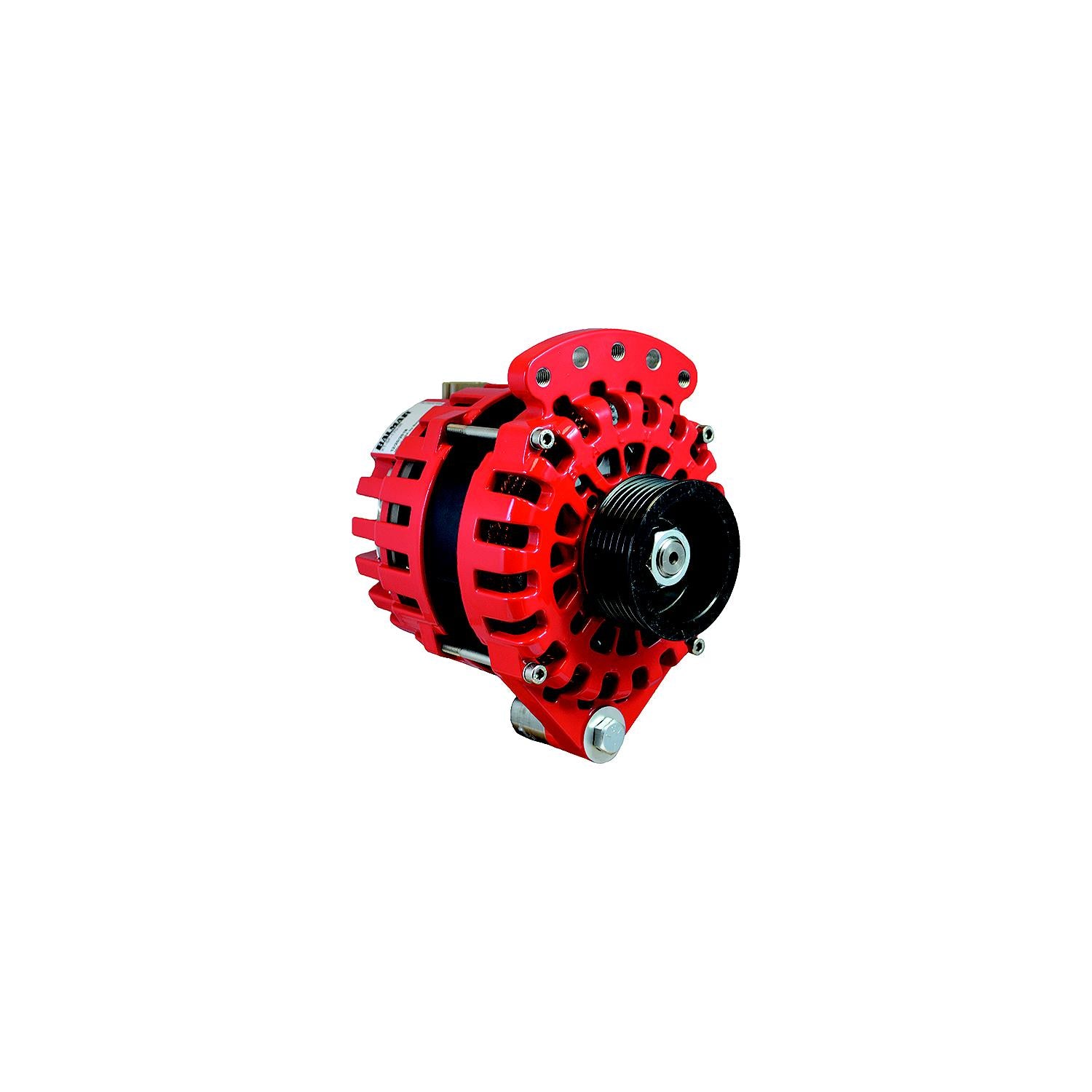

Balmar SF170IR Xt-Series Alternator, 170 Amp - XTSF170IR 14.3 lb

For WakeBoat and Inboard Gas Applications.State-of-the-art, braided wire stator design to generate exceptional output in the smallest possible area. The XT-Series stator achieves an industry-best 85% copper windings density which provides more power at low RPM, higher overall power and cooler operation. Mounting styles are drop-in compatible for WakeBoat and other GM gasoline engine applications. Over 60% of WakeBoat run times are at idle speed. Many high current electrical loads are engaged at idle, including ballast pumps, high-output stereo systems and multiple instrumentation loads. Standard alternators only produce about 30A-40A at idle speed, leaving these loads to be serviced by onboard batteries. Excessive draining causes battery sulfation and reduced lifetimes. Dealers report that AGM batteries which should last 5-7 years on these vessels are being replaced annually. The XT-Series Alternator produces over 100A at idle speed – ample power to service all electrical loads with power left over to top-off house batteries.

Key Features

• 170A in a Small Case Package
• Up to 110A at Idle Speeds
• Ideal for High Electrical Load Vessels
• High Speed Bearings for Long Life
• Dual Fan Cooling, High Airflow Frame
• USCG Title 33, ISO 8846 and SAE J1171 Certified

Specifications

• Amps: 170
• Mount Type: 1-2" Single Foot (11Si Typical)

Product Details

• Brand: Balmar
• Product Type: Alternators
• Manufacturer Part Number: XTSF170IR
• UPC: 676205501996
• LNS Category: Engine Parts & Consumables
• LNS Subcategory: Drives, Gearcases & Transoms
• Dimensions: H 8 in × W 9 in × D/L 10 in
• Country of Origin: US

Compare the manufacturer part number, dimensions, fitment, voltage, material, and included components with your application before ordering.
