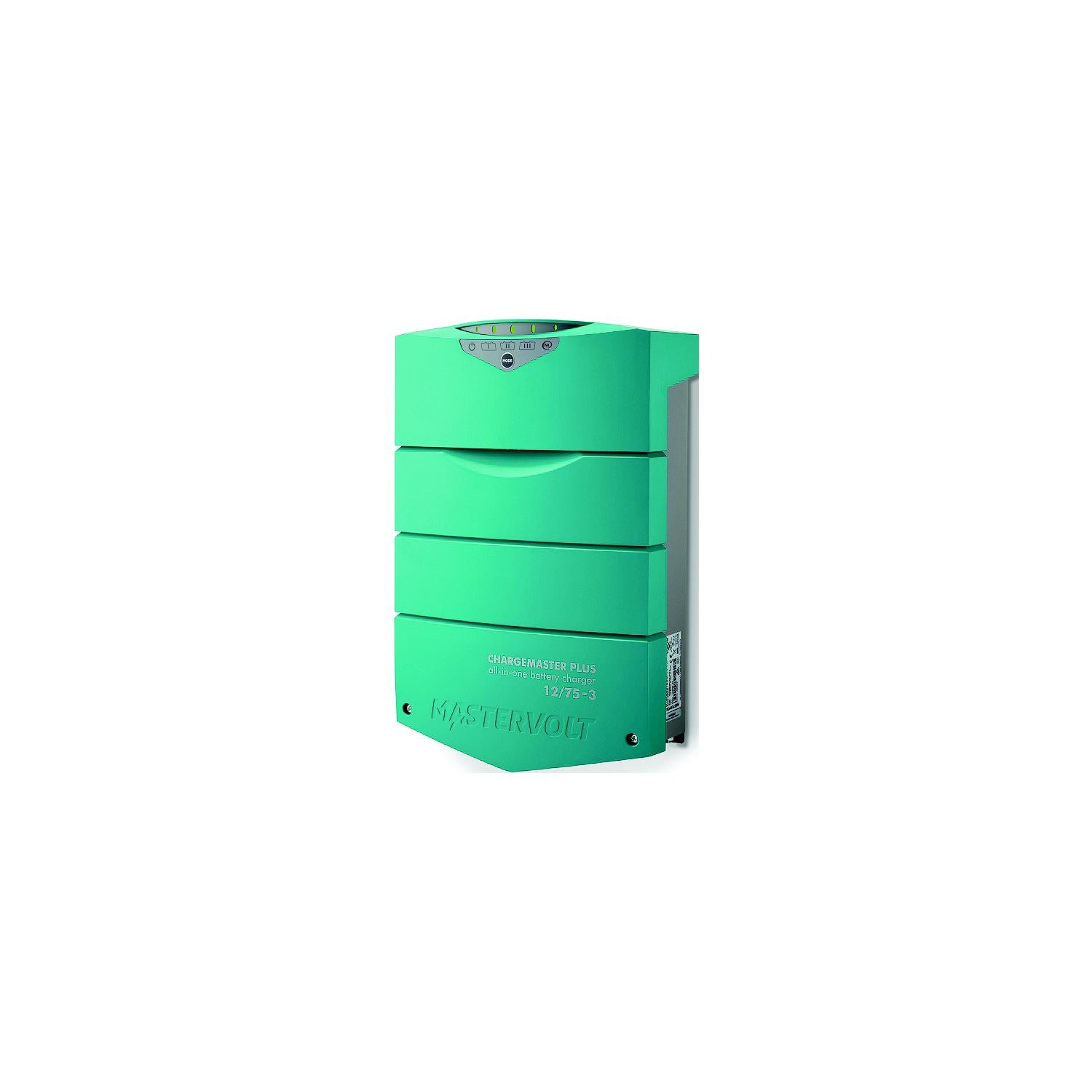

Mastervolt Chargemaster Plus CZone 3-Bank Battery Charger, 12V, 75 Amps - 44310755 16.6 lb

Product Overview

3-Step+ charge method optimum efficiency so your batteries will perform better and last much longer. Designed for versatility, it charges virtually any combination of three batteries in a fast and safe way and works anywhere in the world. The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. Powerful ConnectionsIn modern applications, all components work together. CAN-based MasterBus enables the charger to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA2000 and CANopen. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Key Features

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single charger
• Charges multiple batteries while underway
• Extended specifications: offers 20% more output at 14.4V and 80% charging power at 140°F
• Safe Charge: quickly recognize the State of Charge for extended battery life
• Very wide operating range of 80-275V AC, 35-70 Hz
• Compact, easy to connect and quick to install

Specifications

• Amps: 75
• Banks: 3
• Charge Characteristic: IUoUo, automatic / 3-stage + for Gel / AGM / wet / Lithium Ion + a user-defined option
• Communication(s): MasterBus, CZone, NMEA
• Cooling System: vario fan
• Delay Lower Input Set Point: via automatic compensation or MasterShunt
• Display Type: LED display
• Galvanic Isolation: yes
• Model: 12/75-3
• Nominal Input Voltage: 120/230V (80-275V) 50/60Hz
• Nominal Output Voltage: 12
• Number of Battery Outlets: 3 (max.)
• Overall Dimensions: 384 x 250 x 127
• Power Consumption: <2 mA (MasterBus out)
• Power Factor Control: > 0, 98
• Power Supply Mode: yes
• Protection Degree: IP23, vertical mounting
• Protections: over temperature, overload, short circuit, high / low battery voltage, ignition protection

Product Details

• Brand: Mastervolt
• Product Type: Battery Chargers
• Manufacturer Part Number: 44310755
• UPC: 816882022555
