OceanLED  |  Barcode: 5051803009092

OceanLED OceanConnect Junction Box - 013204 1.6 lb

$360.75
Shipping calculated at checkout.

Safe, secure checkout with flexible payment options

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

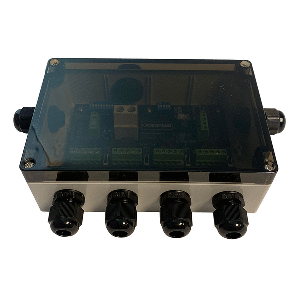

OceanLED OceanConnect Junction Box - 013204

OceanConnect Junction Box The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box. The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights. Contents: 1x OceanConnect unit, including 4x 7.5A blade fuses 4x mounting screws 1x twin entry cable grommet 4x blanking plugs Specifications: Voltage: 12/24V DC (max 32V DC) Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out Power Input Terminals Wire Gauge: 8-20 AWG DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max DMX Input: 1x DMX Input (to connect the DMX controller) DMX Output: 1x DMX Output (to link junction boxes in the chain) DMX Terminator: Onboard DMX terminator with an on/off switch Physical Specifications Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3") Enclosure: IP66-robust polycarbonate Weight: 270g

Specifications

Brand OceanLED
Manufacturer Part Number 013204
UPC 5051803009092
