em-trak B921 Class B AIS Transceiver - 2W CSTDMA - 430-0001 1.55 lb

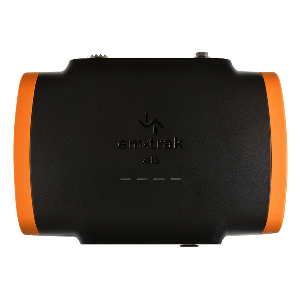

em-trak B921 Class B AIS Transceiver - 2W CSTDMA - 430-0001

B921 Class B AIS Transceiver - 2W CSTDMA **As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.** Click here to download form . The B921 is a 2W CSTDMA Class B AIS transceiver, delivering em-trak's advanced performance and reliability through next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, even at the range limit, so you always have the complete picture and the time to respond. em-trak's intelligent connectivity means the B921 can be connected to any chart-plotter and comes equipped with integrated GPS technology and best-in-class, ultra-low power consumption. Installation is also simplified with our unique FLEXI-FIT® bracket system to have you up and running in no time at all. Features: Certified AIS Class B – 2W CSTDMA Global certification - USCG / FCC / Canada / Europe SRT-AIS™ Transceiver Engine for superlative proven performance FLEXI-FIT™ bracket system for easy, convenient, and secure installation Internal high-performance GPS receiver and antenna (external antenna optional) Water, pressure spray, and damp proof (IPx6, IPx7 certified) Protected from vibration, shock, and extreme temperatures Small and lightweight Ultra-low power consumption – best in class NMEA 0183 & NMEA 2000 Automated health and performance monitoring Silent mode (transmit-off) function Enhanced RF screening to protect against electromagnetic interference Built-in power surge protection Physical & Environmental Specifications: Size (H x W x D): 150 x 115 x 45mm Weight: 375kg Operating temperature: -25°C to +55°C Storage temperature: -25°C to +70°C Ingress protection: IPx6 and IPx7 Electrical Specifications: Supply voltage: 12V or 24V DC Supply voltage range: 9.6V - 31.2V DC Average current (at 12V): 135mA Peak current: 2A Average power consumption (at 12V): 1.6W Galvanic isolation: NMEA 0183, NMEA 2000, VHF antenna port Connectors: VHF antenna: SO-239 GNSS: TNC Power: 12-way circular multipole NMEA 2000: 5-way Micro-C connector USB: USB Micro-B Data Interfaces: NMEA 0183: 2 x bi-directional ports NMEA 2000: NMEA 2000 Ed 3.101, LEN=1 USB: PC virtual com port for NMEA 0183 data Standards Compliance: AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5 Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008 Environmental standards: IEC 60945 Ed. 4 Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0 NMEA 2000: NMEA 2000 Ed 3.101 GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0 GNSS: Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo) Channels: 72 Internal/external antenna: Internal or optional external antenna Time to first fix from the cold start: 26s VHF Transceiver: VDL access scheme: CSTDMA Operating frequency: 156.025MHz - 162.025MHz Channel bandwidth: 25kHz Receivers/transmitters: 2 x receivers, 1 x transmitter AIS receiver sensitivity (20% PER): -111dBm AIS transmitter power: 2W (+33dBm) User Interface: Indicators: Power, transmit timeout, error, silent mode In the Box: 1 x AIS transceiver 1 x Power and data cable (2M) 1 x FLEXI-FIT™ mounting bracket Complete with screws & optional fixing tape This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Brochure Literature (pdf) Url
• Installation Guide (pdf) Url
