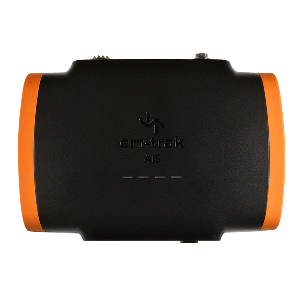

em-trak B952 Class B AIS Transceiver - 5W SOTDMA - WiFi & Bluetooth - 430-0011 2.0 lb

em-trak B952 Class B AIS Transceiver - 5W SOTDMA - WiFi & Bluetooth - 430-0011

B952 Class B AIS Transceiver - 5W SOTDMA - WiFi & Bluetooth **As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.** Click here to download form . The B952 is a high-power (5W SOTDMA) Class B AIS transceiver, offering unmatched performance and ultra-low power consumption. Small and lightweight, it combines integrated Wi-Fi & Bluetooth capabilities for seamless wireless connectivity and AIS data streaming. It is compatible with any mobile device, PC, or wearable – ensuring everyone on board gets the most from your transceiver and related onboard equipment every day. The B952 transceiver works seamlessly with em-trak's CONNECT-AIS app to make programming, configuration, and device monitoring easier than ever before. The class-leading device is engineered to deliver real-time data processing, with increased range and transmission priority and its flexible connectivity means it can be used by up to nine different devices simultaneously. em-trak's next-gen technology means the B952 is delivered within a compact, easy-to-install, rugged package designed and manufactured to operate reliably without maintenance in the harshest marine environments. Features: Certified AIS Class B – 5W SOTDMA Integrated WiFi & Bluetooth Global certification - USCG / FCC / Canada / Europe SRT-AIS™ Transceiver Engine for superlative proven performance FLEXI-FIT™ bracket system for easy, convenient, and secure installation Internal high-performance GPS receiver and antenna (external antenna optional) Water, pressure spray, and damp proof (IPx6, IPx7 certified) Protected from vibration, shock and extreme temperatures Small and lightweight Ultra-low power consumption – best in class Guaranteed connectivity and interoperability with any app, chart plotter, smart phone, tablet or PC NMEA 0183 & NMEA 2000 Automated health and performance monitoring Silent mode (transmit-off) function Enhanced RF screening to protect against electromagnetic interference Built-in power surge protection Physical & Environmental Specifications: Size (H x W x D): 150 x 115 x 45mm Weight: 385kg Operating temperature: -25°C to +55°C Storage temperature: -25°C to +70°C Ingress protection: IPx6 and IPx7 Electrical Specifications: Supply voltage: 12V or 24V DC Supply voltage range: 9.6V - 31.2V DC Average current (at 12V): 170mA Average current (at 12V) (wireless off): 135mA Peak current: 2.5A Average power consumption (at 12V): 2.0W Average power consumption (at 12V) (wireless off): 1.6W Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port Connectors: VHF antenna: SO-239 GNSS: TNC Power: 12-way circular multipole NMEA 2000: 5-way Micro-C connector USB: USB Micro-B Data Interfaces: NMEA 0183: 2 x bi-directional ports NMEA 2000: NMEA 2000 Ed 3.101, LEN=1 USB: PC virtual com port for NMEA 0183 data WiFi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode) Bluetooth: BT Classic 4.0, 7 concurrent connections Standards Compliance: AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5 Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008 Environmental standards: IEC 60945 Ed. 4 Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0 NMEA 2000: NMEA 2000 Ed 3.101 GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0 GNSS: Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo) Channels: 72 Internal/external antenna: Internal or optional external antenna Time to first fix from the cold start: 26s VHF Transceiver: VDL access scheme: SOTDMA Operating frequency: 156.025MHz - 162.025MHz Channel bandwidth: 25kHz Receivers/transmitters: 2 x receivers, 1 x transmitter AIS receiver sensitivity (20% PER): -111dBm AIS transmitter power: 5W (+37dBm) User Interface: Indicators: Power, transmit timeout, error, silent mode In the Box: 1 x AIS transceiver 1 x Power and data cable (2M) 1 x FLEXI-FIT™ mounting bracket Complete with screws & optional fixing tape This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Brochure Literature (pdf) Url
• Installation Guide (pdf) Url
