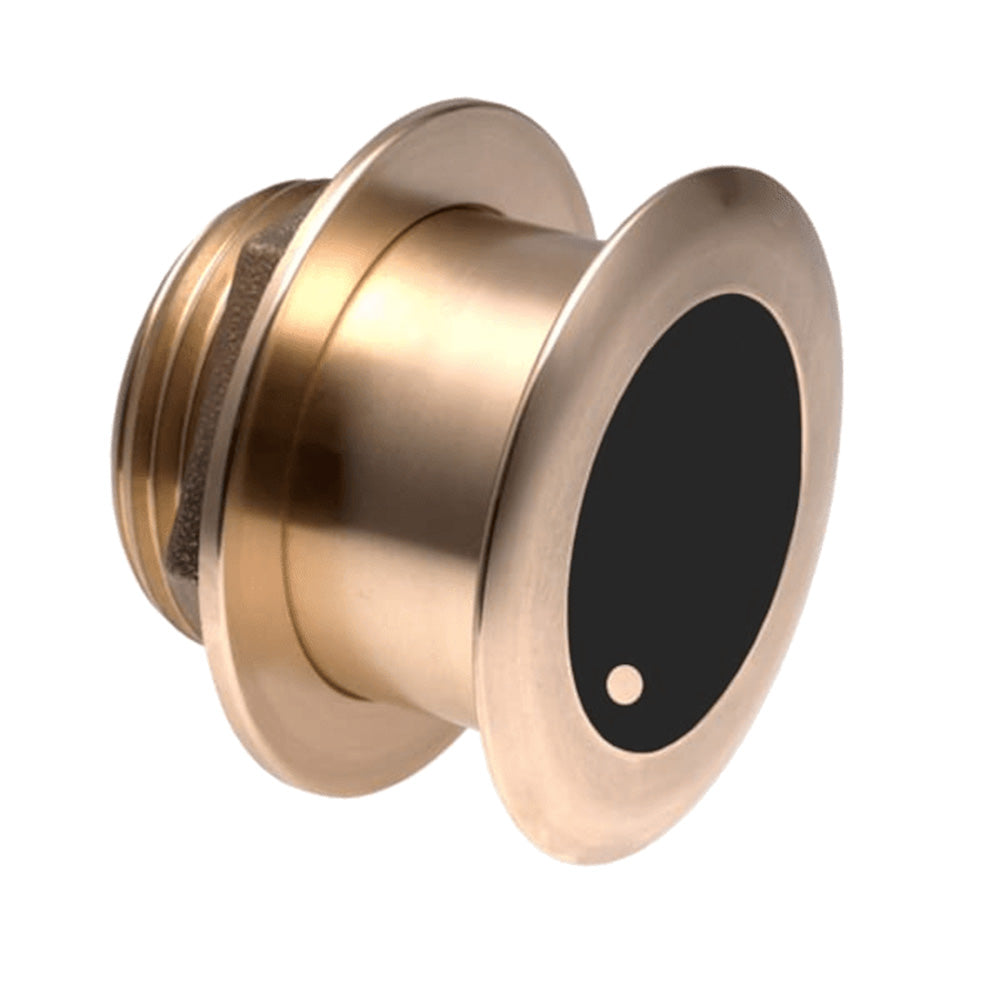

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM] 9.6 lb
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Elemen...
B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable
12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5')
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22°x20°/6°
- Country of Origin: USA
- Deadrise Range: 8° to 15°
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 15°
- Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 12°
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Usable Shaft Length: 71 mm (2.80")
- Display Connector: Cable Required
Specifications:
- Cable Length (Feet): 6.5'
- Chirp: No
- Imaging: Standard
- Mounting Style: Thru-Hull
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs
Brochure (pdf)
