Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit [000-13335-001] 9.2 lb
Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit [000-13335-001] is backordered and will ship as soon as it is back in stock.
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & ...
Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit [000-13335-001] is backordered and will ship as soon as it is back in stock.

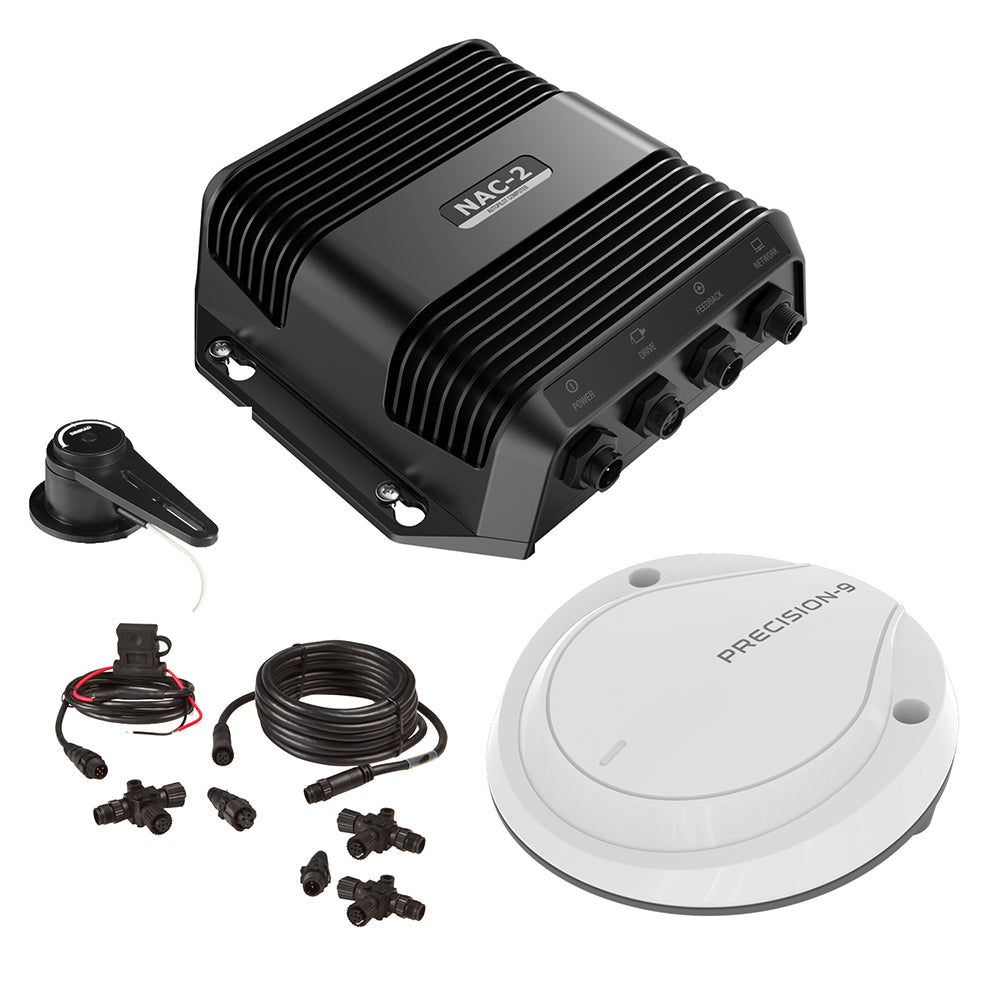

NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit
Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10M (33') in length.
The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).
Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.
RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable
N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators
Specifications:
- Operating temperature: -25°C to +55°C (13°F to 131°F)
- Protection: Splashproof, IPx5
- Weight: 0.6 kg (1.3 lbs)
- Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
- Power supply: 9-31.2 V DC
- Load: 140 mA + drive unit load
- Performance: Drive: 8 A cont., 16A for 1s
- Network: 1xMicroC (NMEA2000)
- Feedback: Variable voltage/resistive 0-5V
- Drive output: To PUMP-1 or HELM-1
- Power supply: 9-31.2 V DC
- Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Clutch: 12/24V DC, min 10mA, max 3A
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 10"H x 16"W x 16"L WT: 9.2 lbs
- UPC: 9420024155639
Owner's Manual (pdf)
