Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645] 0.3 lb
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 S...
Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M6 screw
Applications:
- Mast foot blocksÂ
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 6393.4 / (kg) 2900
- Breaking Load: (lb) 17196 / (kg) 7800
- Weight: (lb) 0.315 / (g) 143
- W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900Â
- W.L 2 (45 degrees): (lb) 5732 / (kg) 2600Â
- W.L 3 (0 degrees): (lb) 5291 / (kg) 2400Â
- B.L 1 (90 degrees): (lb) 17196 / (kg) 7800Â
- B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900Â
- B.L 3 (0 degrees): (lb) 13889 / (kg) 6300Â

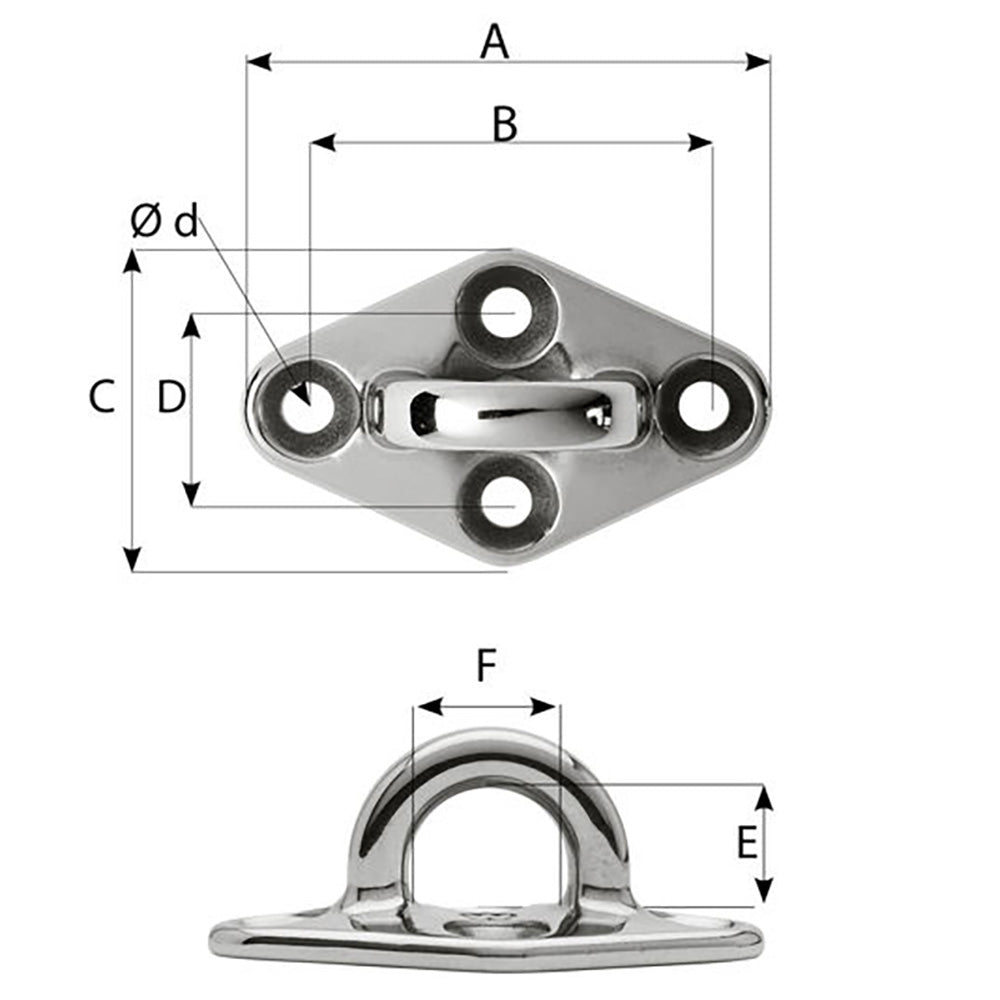

Dimensions:
- A: (inch) 3 7/64" / (mm) 79
- B: (inch) 2 23/64" / (mm) 60
- C: (inch) 1 31/32" / (mm) 50
- D: (inch) 1 17/64" / (mm) 32
- E: (inch) 47/64" / (mm) 18.5
- F: (inch) 55/64" / (mm) 22
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
