Ronstan Series 25 Ball Bearing Orbit Block - Becket Swivel Shackle [RF28100] 0.02 lb

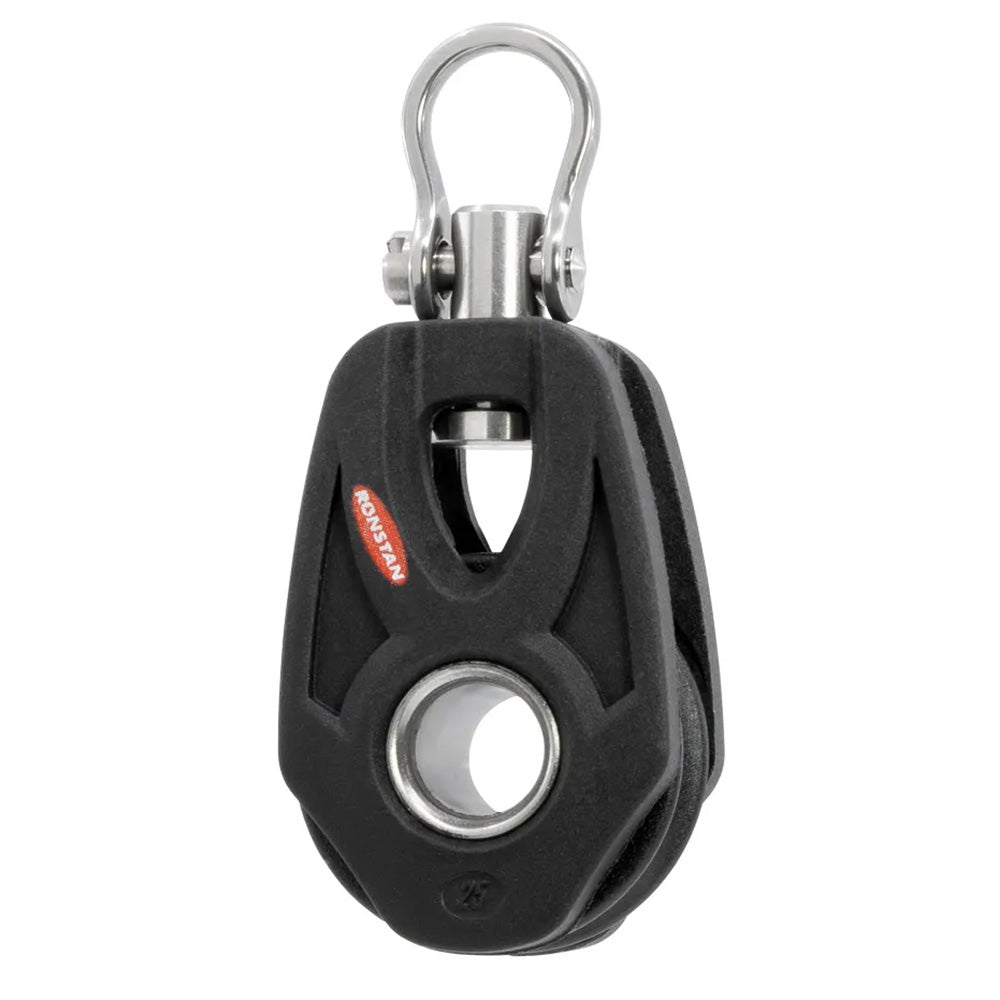

Series 25 Ball Bearing Orbit Block™ - Becket & Swivel Shackle

Single sheave ball bearing block with becket hub and swivel shackle head.

Series 25 Ball Bearing Orbit Blocks™, delivering superior strength, reduced weight, and exceptional performance for high-demand dinghy and small boat applications.

Designed with competitive sailors and performance boats in mind, these compact 25mm blocks are engineered to achieve the highest possible strength-to-weight ratio. Featuring Ronstan’s renowned high compression strength acetal bearing system, the Series 25 BB Orbit Blocks™ are a lightweight yet durable solution, ideal for control line systems such as mainsheet and spinnaker sheet turning blocks, cunninghams, and cascading vangs on dinghies up to 4 meters.

Each block has a stainless steel hub for versatile lashing attachments and through-sheave becket functionality, making them adaptable to a wide range of rigging setups. The hub accommodates up to 4mm (5/32") lashing and ensures maximum efficiency without compromising reliability.

Features:

• 2-stage ball bearing system.
• Suits up to 8mm (5/16”) lines.
• Hollow hub for becket take-off.
• Lashing blocks suit up to 4mm (5/32”) lashing.

Specifications:

• Max. Rope diameter (in): 5/16
• M.W.L. (lb): 500
• Sheave diameter (in): 1
• B.L. (lb): 990
• Weight (oz): 0.6

Applications:

• Mainsheet and spinnaker sheet turning blocks on dinghies to 4m (13ft).
• Control lines.
• Cascading vangs.
• Leech lines & cunninghams.

Materials:

• Frame/cheeks: Toughened, glass fibre reinforced nylon.
• BB Sheave and balls: high compression strength acetal.
