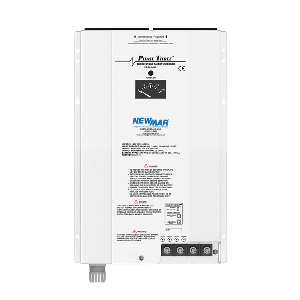

Newmar Power Newmar PT-24-60W Battery Charger

Newmar Power Newmar PT-24-60W Battery Charger

PT-24-60W Battery Charger “Smart” marine battery charging technology for 24V systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life. A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance. Features: 24V model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 207-253 Input Amps @ Full Load: @ 115 VAC: NA, @ 230 VAC: 13 Power Factor: .7 Max Output Amps: 60 Output Banks: 3 Battery Capacity (Amp-Hours): 120-600 Operating Temp. Rating Reference: T-4 Case Size Reference: A-5 Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2” (5.08 cm) to height and 1” (2.54 cm) to depth Weight Lbs./Kg: 24.1/11 Optional Temp. Sensor Model: TP Remote Panel Model: N/A Compliance Reference: EN, CE, ABS Temperature Rating References: Temperature: -20 degrees C to +50 degrees C Derate Linearly From Full output Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Owners Manual (pdf) Url
