Victron Energy  |  Código de barras: 8719076062967

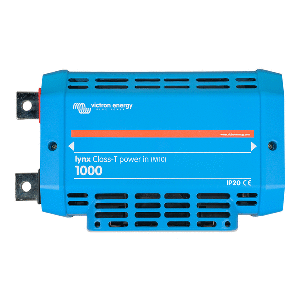

Victron Lynx Power-In Class-T M10 Terminals [LYN060404010] 6.6 lb

$170.00 $200.00
Los gastos de envío se calcularán al momento de pagar.

Información de cuidado

¡Importante! Asegúrese de inspeccionar este artículo antes de realizar su compra. Estamos aquí para ayudarle en cualquier momento. No dude en comunicarse si tiene alguna pregunta o inquietud; ¡estamos más que felices de poder ayudar! Además, ofrecemos opciones de financiación para facilitar su compra.

Entrega y envío

Nos complace ofrecer envío gratuito en todos los pedidos dentro de los EE. UU. Sin embargo, para artículos de gran tamaño, es posible que se aplique una tarifa de envío adicional. Nos esforzamos por garantizar la entrega oportuna y segura de sus productos, asociándonos con los mejores servicios de envío. Para cualquier consulta sobre nuestra política de envío, no dude en ponerse en contacto con nuestro equipo de atención al cliente. ¡Gracias por elegir BGA Marine!





Lynx Power-In Class-T M10 Terminals

The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Specifications

Power:

  • Voltage Range: 9 - 60Vdc
  • Current Rating: 1000Adc continuous
  • Connections: M10
  • Busbar: 3/8”

Physical:

  • Enclosure Material: ABS
  • Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
  • Unit Weight: 2.1 kg
  • Busbar Material: Tinned copper
  • Busbar Dimensions (H x W): 8 x 30mm

Environmental:

  • Operating Temperature Range: -40°C to +60°
  • Storage Temperature Range: -40°C to +60°
  • Humidity: Max. 95% (non-condensing)
  • Protection Class: IP20
Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • Fuse Type: Class T
  • Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs
  • UPC: 8719076062967

Quick Guide (pdf)
Owner's Manual (pdf)
