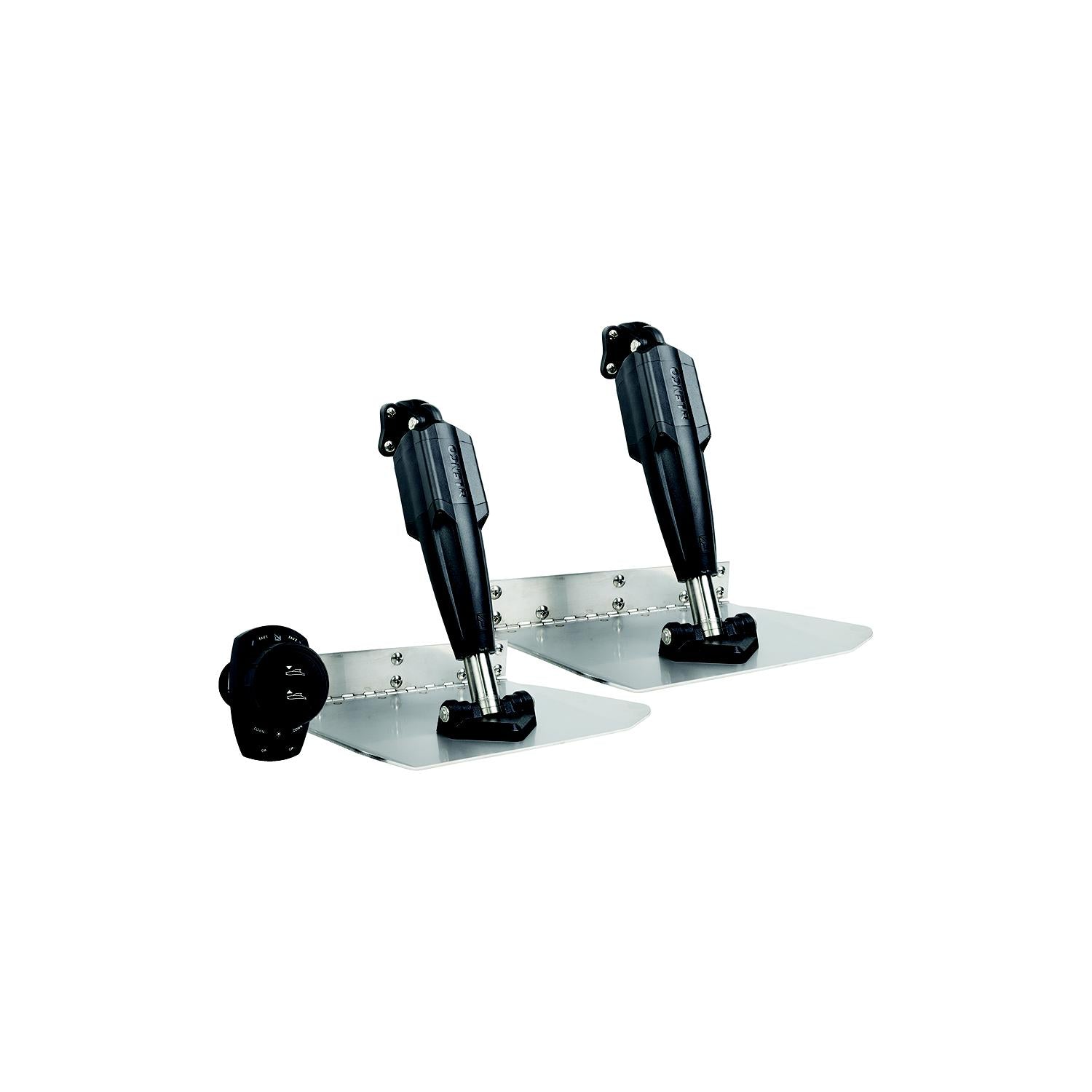

Lenco 15183106 Pro Control Assist 12V Trim Tab System, 12" x 12" Standard Trim Tab Kit - 15183-106 22.7 lb

Product Overview

Pro Control Assist is the manual control option which features a smart, sleek dial controller, providing a best-in-class user interface. Standard Mount Trim Tabs— The original Trim Tab design, ideal for center console fishing boats to cuddy cabin cruisers. Edge Mount Trim Tabs— Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3" (7.6 cm) lower mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style.

Key Features

• Kits Include:
• (1) Pro Control Assist Keypad (15175-106)
• (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades: - Standard blades - with a 5/8" (1.6 cm) flared trailing edge. OR - Edge Mount blades - with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge) & 1/8" (3.2 mm) diameter hinge pin.
• (2) 2.25" Stroke SD Pro Actuators, 10" pin to pin (15187-001)
• (5) Micro C Tee Connector (30267-001)
• Micro C Power Cable with fuse and ground (30281-001)
• (2) 6' Micro C Drop cables (30269-002), (1) 25' (30269-004) Micro C Drop cables
• (2) 6 Pin Detusch to Micro C Actuator Network Adapter Cable (30377-001)
• (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
• (2) Wake Signal Adapter for Non-Mercury Systems (30376-001)

Specifications

• Description: Complete 12" x 12" Standard Trim Tab Kit With Pro Control Assist

Product Details

• Brand: Lenco
• Product Type: Trim Tab Accessories
• Manufacturer Part Number: 15183-106
• UPC: 874847000116

Compare the manufacturer part number, dimensions, fitment, voltage, material, and included components with your application before ordering.
