Actisense USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 and RS232 0.4 lb

Actisense USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 and RS232

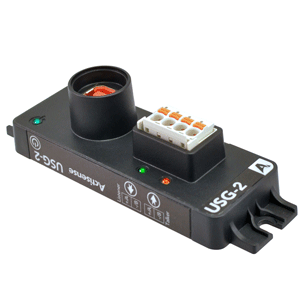

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232 The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network. The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus. It provides a far safer connection when compared to standard USB to serial converters. Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from ground loops. The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port. The USG-2 is the safest way to connect a boat’s data network to an on-board PC. Features: NMEA 0183, RS422 & RS232 compatible ISO-Drive™ technology Pluggable screwless connector with locking latch & strain relief Encapsulated electronics High retention USB socket Diagnostic & power LEDs Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit Pluggable screwless connector Inputs & outputs protected against over voltage, ESD & short circuits Simple installation Protects PC from damage Eliminates ground loops Technical Specifications: Power Supply (USB) Power Source - Bus powered Maximum Bus Current - 50mA NMEA 0183 Port – Talker & Listener Number of Listener/Input Ports - One isolated NMEA 0183 Listener Number of Talker/Output ports - One isolated NMEA 0183 Talker Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Galvanic Isolation - NMEA 0183 Talker and Listener Isolation Speed/ Baud Rate - 4800 to 230400 bps / baud Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded) Talker output voltage drive - >2.0V (differential) into 100Ω Talker output current drive - 20mA max. Talker output protection - Short circuit and ESD Listener input voltage tolerance - -15V to +15V continuous Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection USB Port Compatibility - USB 1.1, 2.0 and 3.0 Speed/ Baud Rate - 300 to 230400 Baud Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug) Withdrawal Force - 1.5Kg Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 & MAC OS X supplied on CD & Actisense website Mechanical Materials - Housing – ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant – polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector – PPA-GF with CrNi spring and tin plated Ecu contacts Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available Weight - Main body 65g, USB cable 70g USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug Approval & Certifications EMC - EN 60945 (sections 9 & 10) Environmental protection - IP67 (Encapsulated electronics) Operating temperature - -25°C to +70°C Storage temperature - -40°C to +85°C Relative Humidity (RH) - 0 to 93% RH Guarantee - 3 years (5 Years if registered) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Product Resources

• Owners Manual (pdf) Url
• Brochure Literature (pdf) Url
