Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed - A2K-SBN-2 0.9 lb

Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed - A2K-SBN-2

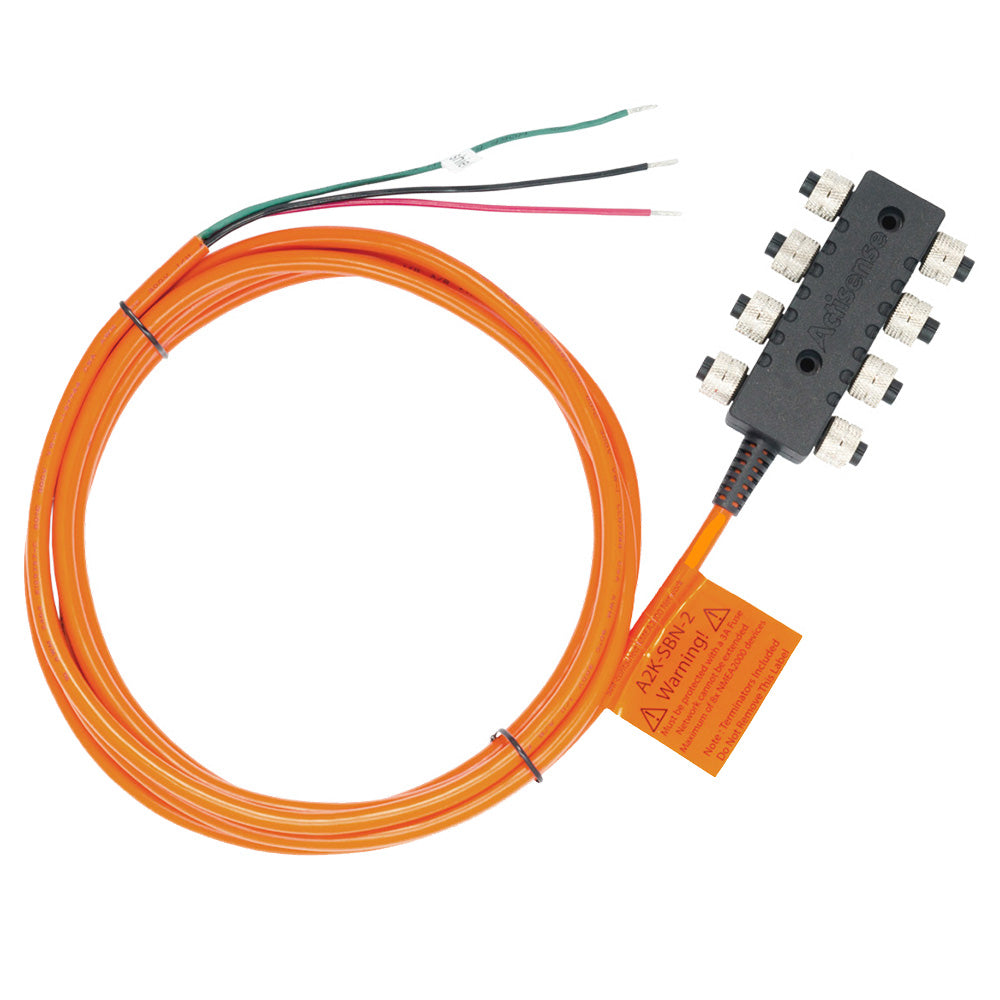

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed Installing small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense. The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space. Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level. Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 8x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI Shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices Simple installation, fewer components, more reliable, lower cost Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables Quick installation, no special tools required Technical Specifications: Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 120Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 – “A” – polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU (Halogen Free) over Epoxy filled PBT housing Flammability rating - UL94 V-0 Internal Housing Shield - Copper foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 150mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Wires - 16 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Cable Shield - Al-mylar Weight - 410g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Product Resources

• Owners Manual (pdf) Url
• Brochure Literature (pdf) Url
• Video Urls
