Airmar xSonic M135M Medium Chirp 1 kW InHull Transducer - 9-Pin - M135C-M-9N
Airmar xSonic M135M Medium Chirp 1 kW InHull Transducer - 9-Pin - M135C-M-9N está agotado y se enviará tan pronto como vuelva a estar disponible.
Información de cuidado
Información de cuidado
¡Importante! Asegúrese de inspeccionar este artículo antes de realizar su compra. Estamos aquí para ayudarle en cualquier momento. No dude en comunicarse si tiene alguna pregunta o inquietud; ¡estamos más que felices de poder ayudar! Además, ofrecemos opciones de financiación para facilitar su compra.
Entrega y envío
Entrega y envío
Nos complace ofrecer envío gratuito en todos los pedidos dentro de los EE. UU. Sin embargo, para artículos de gran tamaño, es posible que se aplique una tarifa de envío adicional. Nos esforzamos por garantizar la entrega oportuna y segura de sus productos, asociándonos con los mejores servicios de envío. Para cualquier consulta sobre nuestra política de envío, no dude en ponerse en contacto con nuestro equipo de atención al cliente. ¡Gracias por elegir BGA Marine!
Airmar xSonic M135M Medium Chirp 1 kW InHull Transducer - 9-Pin - M...
Airmar xSonic M135M Medium Chirp 1 kW InHull Transducer - 9-Pin - M135C-M-9N está agotado y se enviará tan pronto como vuelva a estar disponible.
Airmar xSonic M135M Medium Chirp 1 kW InHull Transducer - 9-Pin - M135C-M-9N

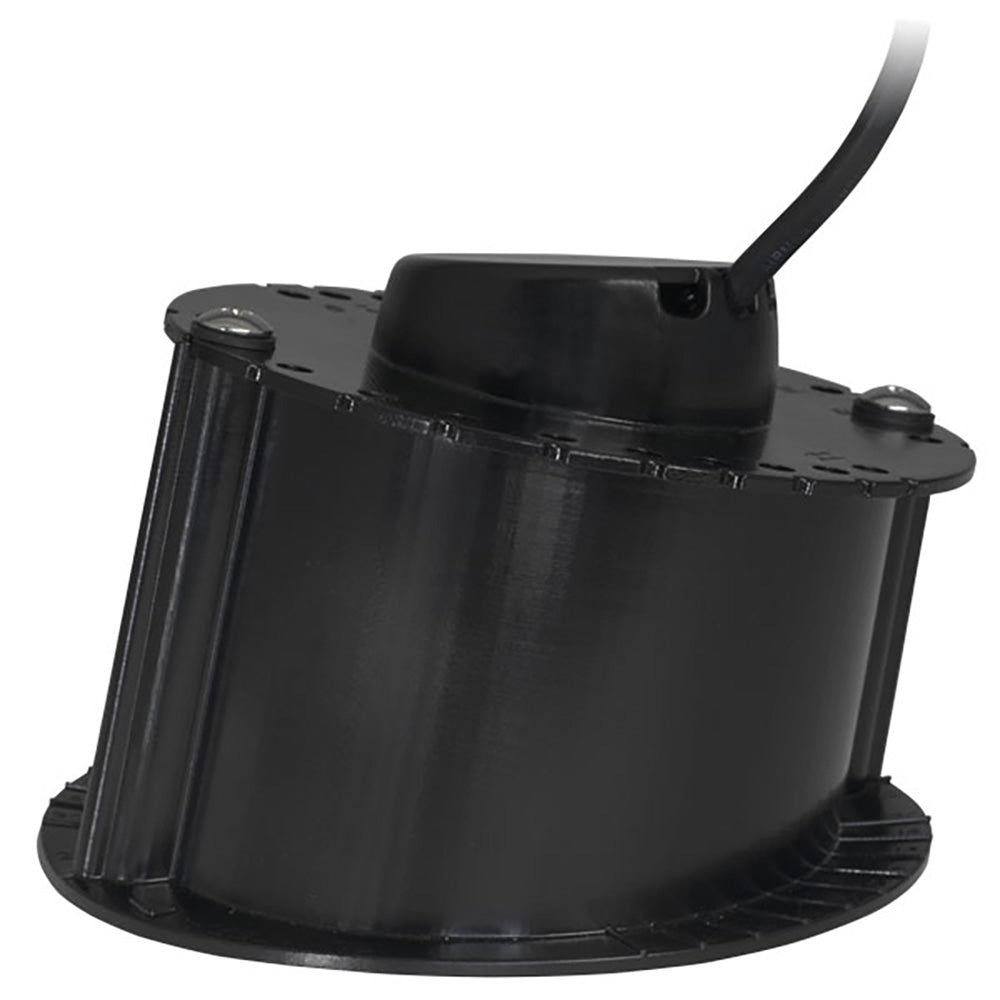

xSonic M135M Medium Chirp 1 kW In-Hull Transducer - 9-Pin The M135M’s medium frequency delivers the right combination of coverage under the boat, an extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also delivers excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 457 m (1500 ft) and gives ultra-clear target resolution. Airmar’s M135M includes a plastic mounting base that is aligned with the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam is shooting straight down for maximum echo returns. The eco-friendly coolant is the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is that there are no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 11 m (36') with a solid fiberglass hull. Features: Depth only 1 kW of power 50 kHz of total bandwidth from one transducer Recommended for use on planing and displacement hulls Plastic transducer and mounting base Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Also available as transom (TM185M), thru-hull low-profile (B175M), and thru-hull with fairing (B285M) mounts Patented Xducer ID® technology Specifications: Medium frequency: 85 to 135 kHz Beamwidth: 16 degrees to 11 degrees Maximum Depth: 457 m (1500 ft.) Weight: 4.2 kg (9.2 lb.) Recommended Boat Length: Up to 11 m (36 ft.) Hull Material: Solid fiberglass only Hull Deadrise: Up to 22 degrees Acoustic Window: Urethane Transducer Element: One broadband ceramic assembly Includes: Adjustable mounting base This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications
| Brand | Airmar |
|---|---|
| Manufacturer Part Number | M135C-M-9N |
| UPC | 801769002119 |
