Simrad V3100 Class B AIS [000-14380-001] 3.8 lb

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

V3100 Class B AIS

The V3100 Class B AIS incorporates SOTDMA technology and increased transmission power to enhance transmission frequency, reliability, and range compared to standard Class B AIS. This ‘black-box’ solution integrates with Simrad displays, and features industry-standard connectivity.

Increased Transmission Frequency and Reliability

The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organizing transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.

Increased Transmission Range

The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range and provides more reliable transmission to satellite-based AIS receivers.

Integrated ‘Black-Box’ Solution

This ‘black box’ AIS solution is designed to work with Simrad multifunction displays, and other NMEA 2000® or NMEA 0183® connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing and includes a built-in SD card slot for standalone AIS data logging.

Features:

• Enhanced performance compared to standard Class B AIS
• Transmit over greater distances with 5-watt output power
• Transmit more frequent position updates with SOTDMA
• Greater transmission reliability in high-traffic areas
• Integrated ‘black-box’ solution

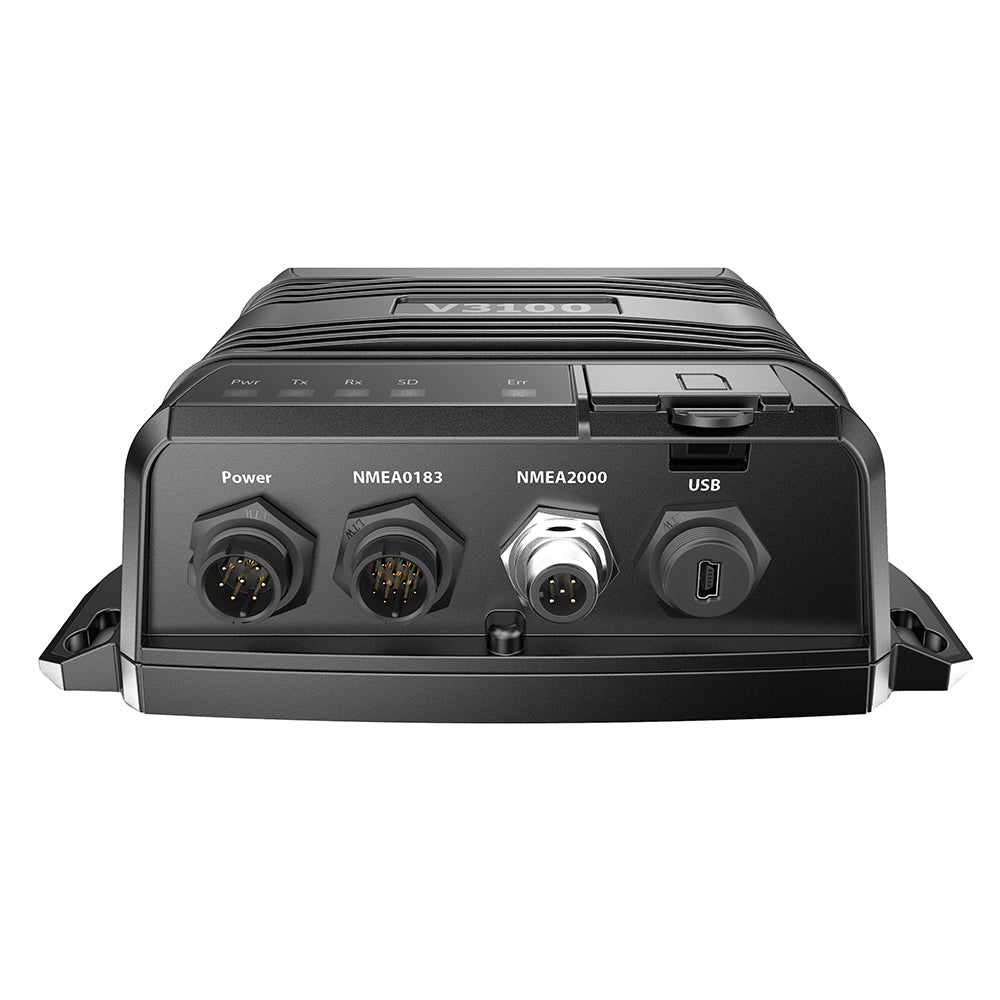

• NMEA 2000®, dual NMEA 0183®, and USB connectivity
• IP67 water-resistant housing
• Built-in SD card slot for AIS data logging

Specifications:

• GPS Included: Yes
• Display Included: No
• Antenna Included: No
• AIS Class: B
• Function: Receive/Transmit
• Box Dimensions: 5"H x 7"W x 13"L WT: 3.8 lbs
• UPC: 9420024171400
