Veratron  |  Código de barras: 7640178720916
Agotado

Veratron NavBox Electronic Control Unit - A2C59501979

Precio normal $894.24
Los gastos de envío se calcularán al momento de pagar.


Safe, secure checkout with flexible payment options

Información de cuidado

¡Importante! Asegúrese de inspeccionar este artículo antes de realizar su compra. Estamos aquí para ayudarle en cualquier momento. No dude en comunicarse si tiene alguna pregunta o inquietud; ¡estamos más que felices de poder ayudar! Además, ofrecemos opciones de financiación para facilitar su compra.

Entrega y envío

Nos complace ofrecer envío gratuito en todos los pedidos dentro de los EE. UU. Sin embargo, para artículos de gran tamaño, es posible que se aplique una tarifa de envío adicional. Nos esforzamos por garantizar la entrega oportuna y segura de sus productos, asociándonos con los mejores servicios de envío. Para cualquier consulta sobre nuestra política de envío, no dude en ponerse en contacto con nuestro equipo de atención al cliente. ¡Gracias por elegir BGA Marine!

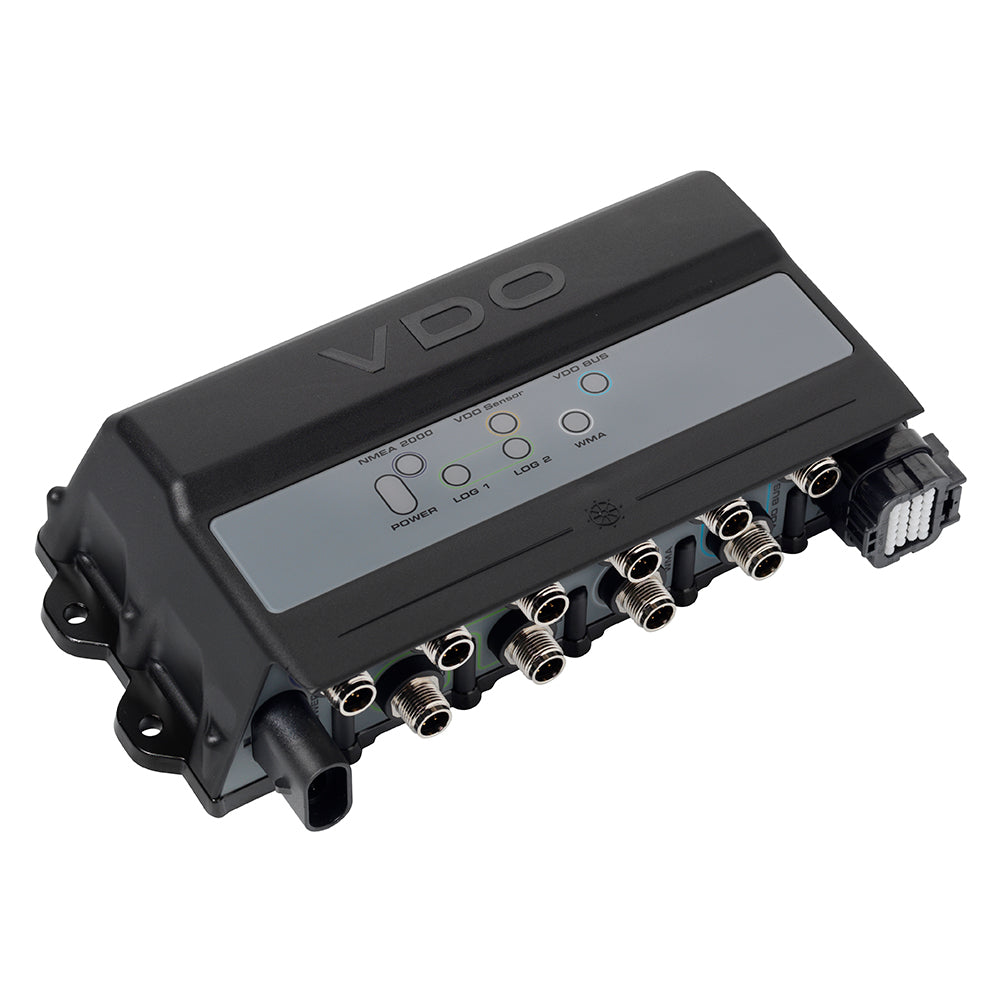

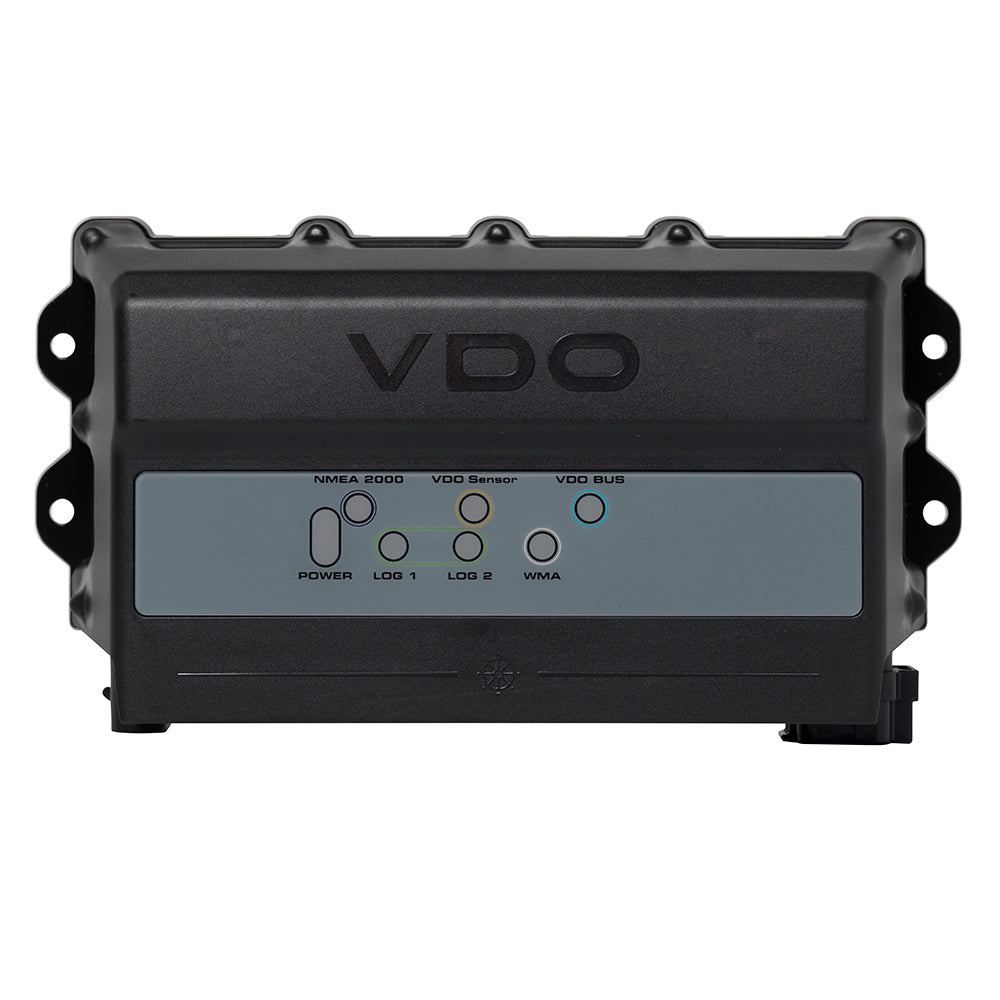

Veratron NavBox Electronic Control Unit - A2C59501979

NavBox Electronic Control Unit The AcquaLink® NavBox is the core of the AcquaLink® VDO Marine system. It acts as a CPU and signal interface. The NavBox provides a wide range of digital and analog input possibilities. It supports up to four electronic engines (J1939 or NMEA 2000®) or one analog engine. It also features two VDO Marine Sumlog® paddle wheel sensor and one analog VDO Marine Windsensor connections, so legacy VDO Marine products can be used and brought to the digital age. NavSensor reads following analog data: Engine Oil Pressure Engine Oil Temperature Engine Coolant Temperature Transmission Oil Pressure Fresh Water, Waste Water and Fuel Level Voltage Rudder Angle Engine Frequency Battery Current Pyrometer It also features a NMEA 0183 input and output port as well as a buzzer output. All received data are converted and sent to the NMEA 2000® network and to the VDO Marine Bus. This gateway function allows displaying engine, liquid level, pressure, temperature and other vital information on any compatible display on the NMEA 2000® network or on designed VDO Marine AcquaLink® gauges or TFT Displays. The configuration of the NavBox can be done by using an AcquaLink® TFT and NavControl or by using the intuitive VDO Marine diagnostic tool. Reverse polarity protection NMEA 2000® certified LED signal status indication Aluminum base plate Front & rear side protection rating IPX4 3x VDO Marine bus lines 1x J1939 CAN bus 1x NMEA 2000® bus 1x VDO Marine Analog Wind Sensor Input 2x VDO Marine Sumlog® Inputs AMP Super Seal power input 26 pin AUX input (analog signals, NMEA 0183) Operating temperature range -20°C/+70°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Brand Veratron
Manufacturer Part Number A2C59501979
UPC 7640178720916
