Actisense NMEA2000 Right Angle Micro Field Fit Connector - Male [A2K-FFC-RM]
Actisense NMEA2000 Right Angle Micro Field Fit Connector - Male [A2K-FFC-RM] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

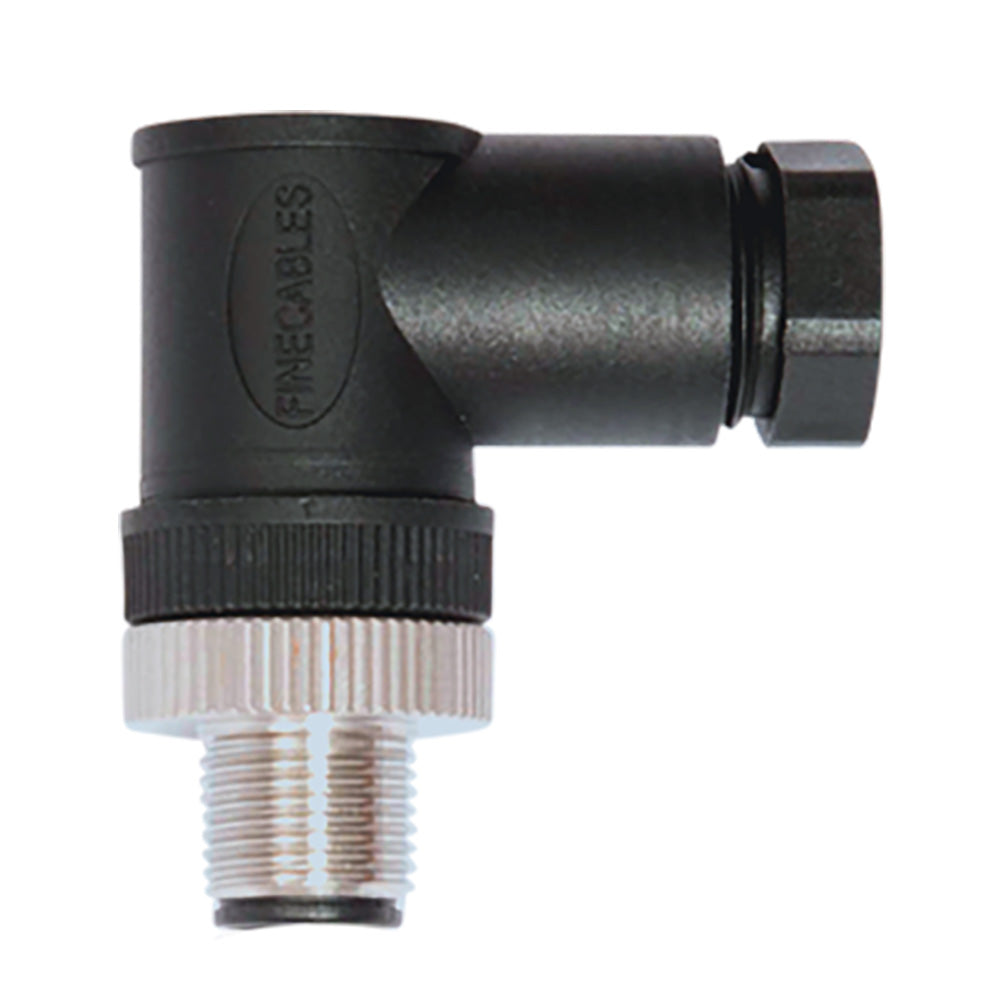

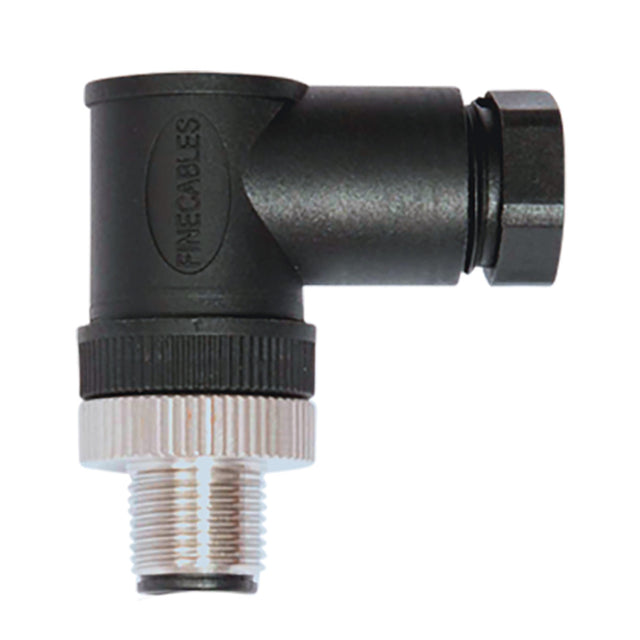

NMEA2000 Right Angle Micro Field Fit Connector - Male
Field-fit connectors allow full customization of your NMEA 2000 network cabling.
Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.
The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60VDC
Mechanical
- Connector Contact - Brass, gold plated
- Wire Gauge/Size - 22 AWG/0.34mm
- Contact Resistance - ā¤ 5 mĪ©
- Contact Polarization - Standard M12 -āAā- polarization
- Mating Thread - M12
- Connector Screw - Stainless Steel
- Sealing Gland Size - PG9/6-8mm Cable
- O-Ring Seal - Rubber, black
- Connector Insert - TPU
- Connector Body - PA+GF, black
- Insulation Resistance - ā„ 100 MĪ©
- Weight - 22.3g
Approvals and Certifications
- Protection - IP67 (in locked condition)
- Ambient Temperature - -25Ā°C to +90Ā°C
Specifications:
- Connection Gender: Male
- Data Interface: NMEA 2000
- UPC: 5060998710041
Owner's Manual (pdf)
Brochure (pdf)
