ARCO Marine  |  Barcode: 659859486475
23% off

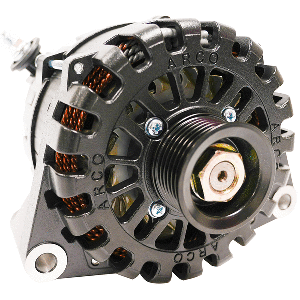

ARCO Marine Zeus A275L N62 Alternator w/Clutch Pulley & Regulator - A275L-12-N62-IE-50K6CP 16.5 lb

$914.47 $1,192.00
Shipping calculated at checkout.

Safe, secure checkout with flexible payment options

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!





ARCO Marine Zeus A275L N62 Alternator w/Clutch Pulley & Regulator - A275L-12-N62-IE-50K6CP

Zeus A275L N62 Alternator with Clutch Pulley & Regulator The highest power output alternator in its size/class. Features: Engineered for High Energy Production. Suitable for Marine, RV, Military, and Commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to: - Heat shedding coatings - Rectifier located on housing exterior - Dual cooling fans - OEM Components It is optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods. Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Made in the U.S.A. Technical Specifications: Voltage - 12v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 14.9 lbs/6.7 kg Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.) Output Voltage - 14.1v (Default) Finish - (Black) Cerakote or E-coating Cut-In RPM - 1,061 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) - 311 Amps Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps Max Continuous Operating Temperature - 110°C / 230°F Mounting Application: Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Brand ARCO Marine
Manufacturer Part Number A275L-12-N62-IE-50K6CP
UPC 659859486475
