BEP/Marinco BEP 701PM Contour Panel Mounted Manual Battery Master Switch - 701-PM 0.4 lb

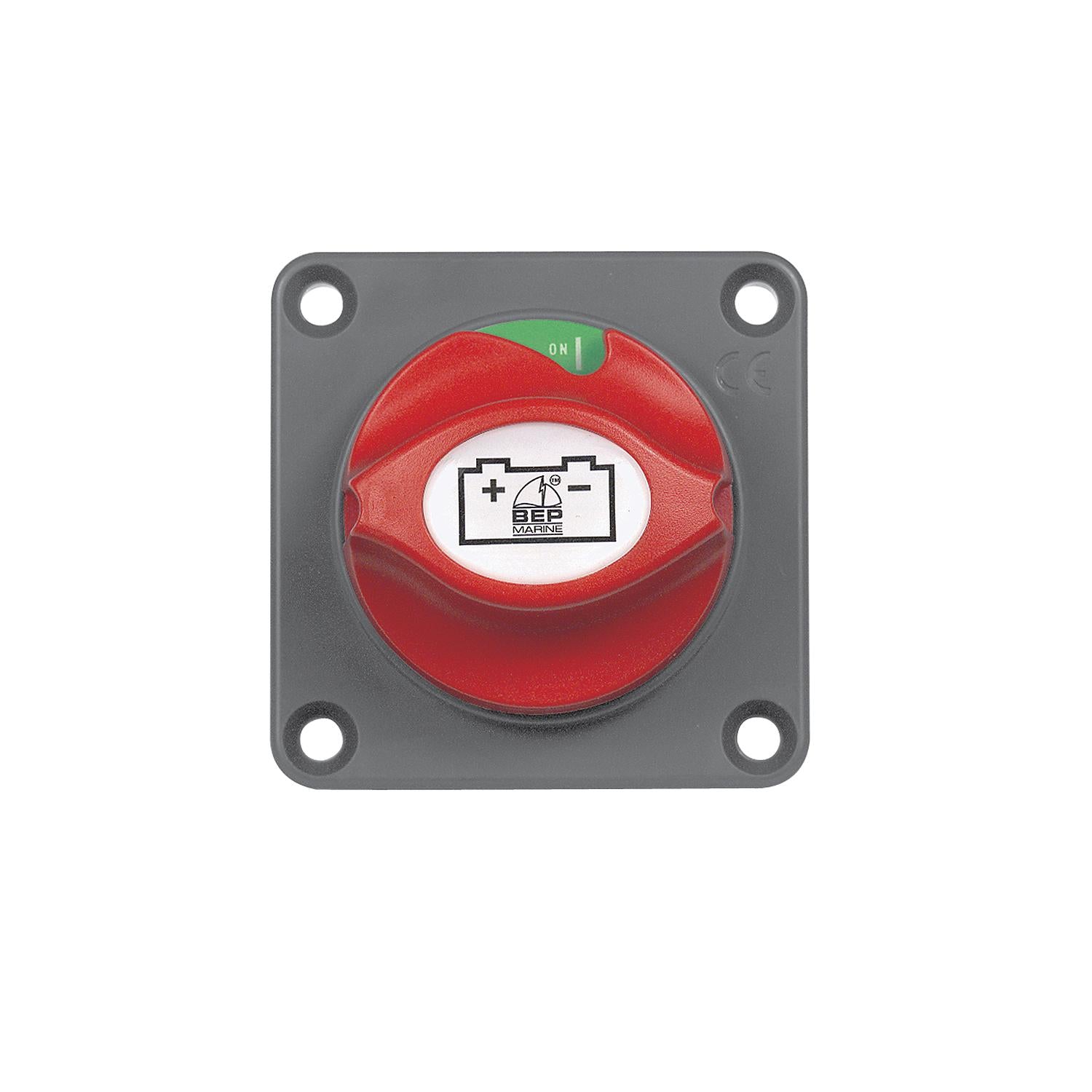

BEP/Marinco BEP 701PM Contour Panel Mounted Manual Battery Master Switch

Product Overview

BEP 701PM Contour Panel Mounted Manual Battery Master Switch2 POSITION - ON/OFFThe 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45º position. The control knob also features an interchangeable labeling system allowing a full range of applications. A removable rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Can be either surface or recess mounted by cutting a 2-1/16" hole. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.Compact, lightweightRemovable keyCountersunk recesses for surface mount applicationCountersunk recesses for surface mount applicationStandard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictionsStandard interchange label systemMolded in high temperature, fiber reinforced plastics

Product Details

• Brand: BEP/Marinco
• Manufacturer Part Number: 701-PM
• SKU: BEP701-PM
• UPC: 870216005355

Please verify the part number and specifications before purchase to ensure proper fitment for your application.
