Blue Sea Systems  |  Barcode: 632085043742

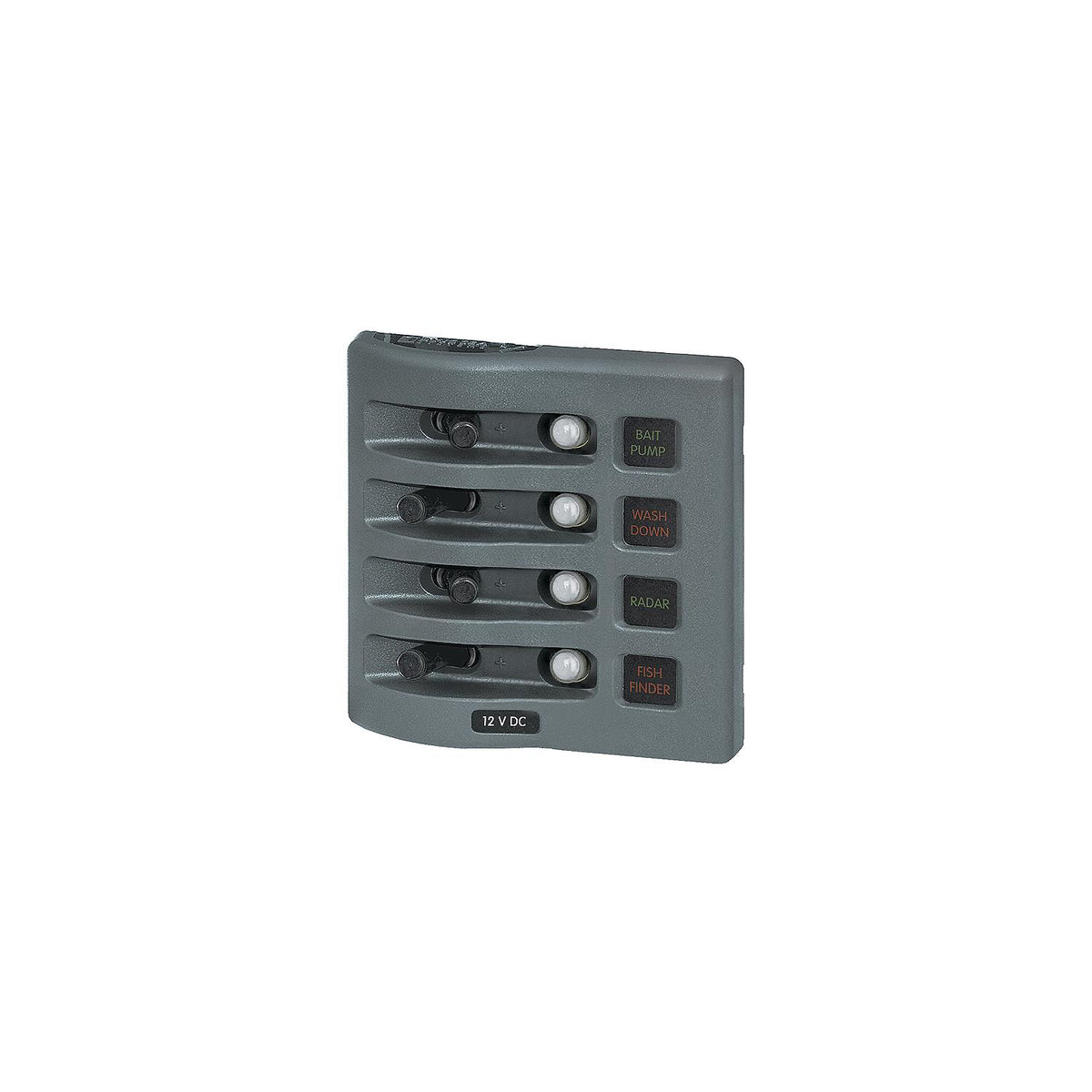

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey [4374] 1.0 lb

$105.99 $146.58
Shipping calculated at checkout.


Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!





WeatherDeck™ Water Resistant Circuit Breaker Panel

PN: 4374

Color: Gray

Features:

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

  • Weatherproof: Waterproof
  • Positions: 4
  • Nominal Voltage: 12v / 24v DC
  • Circuit Protection: Circuit Breaker
  • Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
  • Panel Cumulative Rating: 45A
  • Backlit Label: Green LED
  • Backlighting Amperage: 10mA/Illuminated Circuit
  • Backlighting Voltage: 12 or 24v DC
  • Height: 4.3"
  • Width: 4.25"
  • Depth: 3.5"

Included:

  • (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
  • (4) 4138 WeatherDeck® Toggle Switch Boot - Black
  • (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
  • (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
  • (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Waterproof: Waterproof
  • Voltage: 12v
  • AC/DC: DC
  • Max Breaker Quantity: 4
  • Box Dimensions: 6"H x 6"W x 8"L WT: 1 lbs
  • UPC: 632085043742

Quick Guide (pdf)
