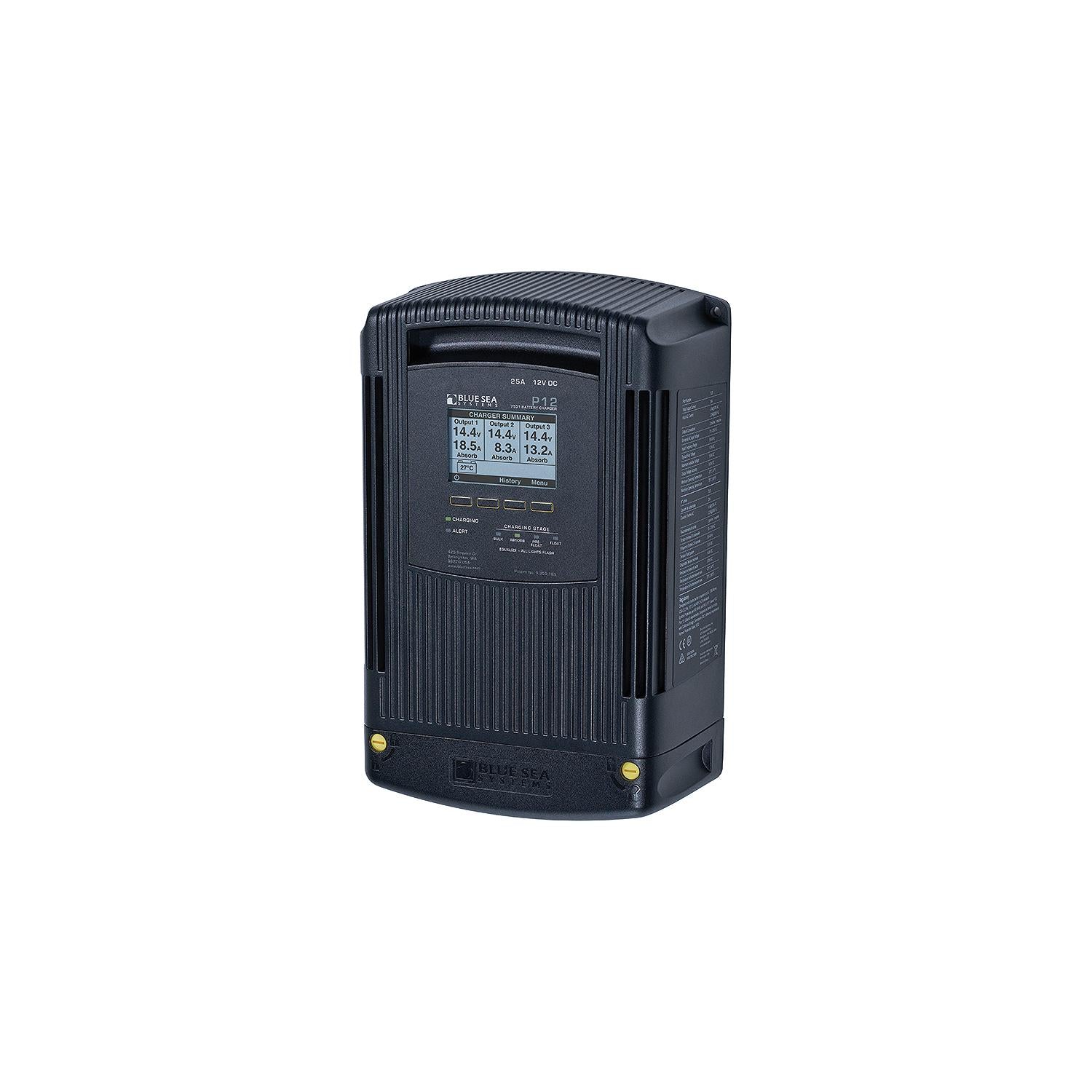

Blue Sea Systems Blue Sea 7531 P12 Battery Charger - 12V DC 25A 10.0 lb

Blue Sea Systems Blue Sea 7531 P12 Battery Charger - 12V DC 25A

P1 2 Battery Charger - 12V DC 25A Four stage, three output, dry mount design, for use in harsh environments. Features: Rugged, finned aluminum case PreFloat™ stage prevents over charging Power factor corrected for efficient use of AC Intuitive diagnostic screens User defined charge profiles and customizable settings Provides charging for up to three battery banks Large, bright display Multi-language: English, French, German, Italian, Spanish Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery Battery Temperature Compensation - adjusts charge voltage based on battery temperature AC over and under voltage shut down and automatic restart Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value DC over voltage and reverse polarity protection Surge and short circuit protection Specifications: Total Output Current: 25A Input AC Current: 4.5A @ 100V AC / 2.25A @ 200V AC Maximum Output Voltage: 16V DC Nominal Voltage: 12V DC Ignition Protected: Yes Number of Outputs: 1 negative / 3 positive Universal AC Input Voltage: 90-265V AC AC Input Frequency: 45-65Hz Output Voltage Accuracy: 0.05V Typical Float Voltage: 13.5V DC Minimum Operating Temperature: -20° C Maximum Operating Temperature: 70° C Minimum Storage Temperature: -30° C Maximum Storage Temperature: 80° C Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead) Recommended for Battery Bank Sizes: 330Ah Maximum / 60Ah Minimum Warranty: 5 Year Height: 13.03" (330.96 mm) Width: 8.46" (214.88 mm) Depth: 3.66" (92.96 mm) Weight: 13.00lb (5.9 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Product Resources

• Owners Manual (pdf) Url
• Brochure Literature (pdf) Url
• Video Urls
