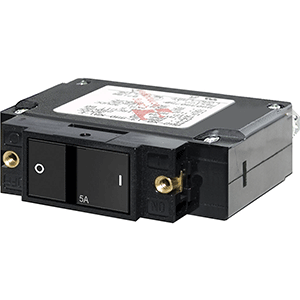

Blue Sea Systems Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A 0.29 lb

Blue Sea Systems Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A

C-Series Flat Rocker Circuit Breaker - Single Pole - 5A Features: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 5A AC / 5A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications
