Blue Sea Systems  |  Barcode: 632085077143
Sold out
23% off

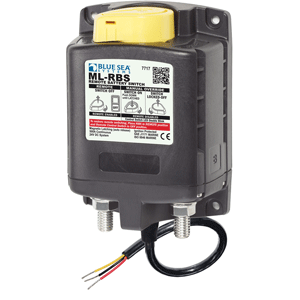

Blue Sea Systems Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V 2.2 lb

$311.93 $402.99
Shipping calculated at checkout.

Safe, secure checkout with flexible payment options

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!





Blue Sea Systems Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/ 8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired Specifications Control Circuit Connection: Tinned Wire Nominal Voltage: 24V DC Manual Control: Yes Coil Function: Auto releasing Mounting: #10 Amperage Operating Current: 8mA when OFF/13mA when ON Amperage Operating Current when changing state: Control Circuit Voltage: 20.2 to 32.9V DC Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating: 10 sec 2500A Cranking Rating: 1 min 1100A Minimum Operating Temperature: -10° C Maximum Operating Temperature: 50° C Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A @ 12V DC 10,000 Cycles Master Control Switch Capability: Yes Mechanical Endurance: 100,000 Cycles Switching Cycles: 100000 Terminal Ring Diameter Clearance: 1.18" (29.97mm) Terminal Stud Length: 0.875" (22.23mm) Terminal Stud Size: 3/8-16 (M10) Terminal Stud Torque: 140 in-lb (15.82 Nm) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Brand Blue Sea Systems
Manufacturer Part Number 7717
UPC 632085077143
