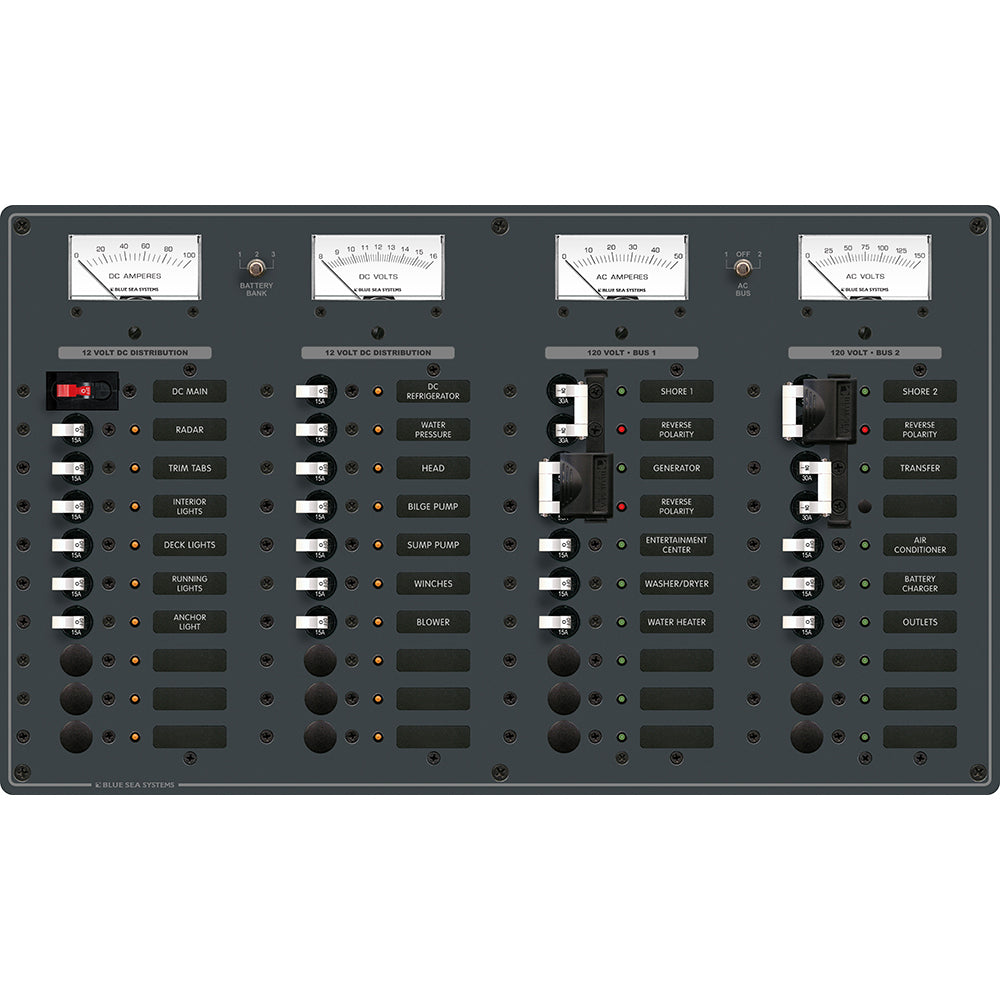

![Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086]](http://www.bgamarine.com/cdn/shop/files/14572XL.jpg?v=1706227165&width=1500)
Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086] 12.5 lb
Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches [8086] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggl...
8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications:
- AC Positions: Source Selectors +12
- DC Positions: Main +19
- 120 Volts AC
- 12 Volts DC
- (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
- (1) 100A - (13) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 12 AC / 19 DC
- AC/DC: Both
- Voltage: 120v/12v
- Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs
- UPC: 632085080860
Owner's Manual (pdf)
