Egis Mobile Electric Egis 20A Panel Mount Mini Circuit Breaker - 4701-20 0.4 lb

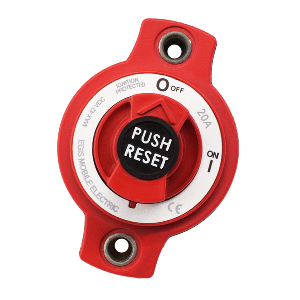

Egis Mobile Electric Egis 20A Panel Mount Mini Circuit Breaker - 4701-20

20A Panel Mount Mini Circuit Breaker This 20A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for. Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 20 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 5,000 Ingress Protection Rating: IP66 Focal Features Easy ON/OFF Rotary Switch Easy to operate and visually recognize switch position. Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications. Weatherproof Construction Sealed against dust and moisture penetration. High temp rated for all installation locations. Compact Size Fit more circuit switching/protection on a smaller panel! Proudly Made in the USA Made in the USA of high-quality components. Ignition Protected Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
