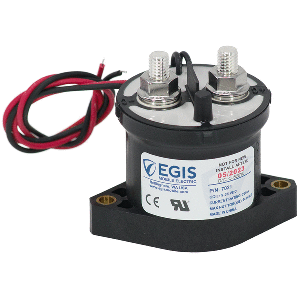

Egis Mobile Electric Egis Contactor 250A, 12/24V - 7021 0.9 lb

Egis Mobile Electric Egis Contactor 250A, 12/24V - 7021

Contactor 250A, 12/24V This 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Applications: Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond. Features: Ignition is protected and safe for installation in closed compartments with potential explosive gases High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc) Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware. 4 Year Industry Leading Warranty Specifications: Continuous Current (Amps): 250/500 Operation Control Voltage: 9-36 VDC Ingress Protection: IP67/IP69K Ignition Protection: ISO-8846 / UL 1500 Electrical Endurance Rating (Cycles): 1,000,000 Minimum Operate Temp. (Deg C): -40 C Max Operate Temp. (Deg C): 85 Focal Features: Sealed Enclosure Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations. 18-8 Stainless Steel Self-Locking Hardware Resists corrosion and ensures long-term connection reliability with premium hardware. High Interrupt Capability Safely able to open in a locked starter situation up to 1,500 A @14 Vdc. Easy Mounting Reinforced mounting holes provide secure installation and easy attachment for the installer. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
