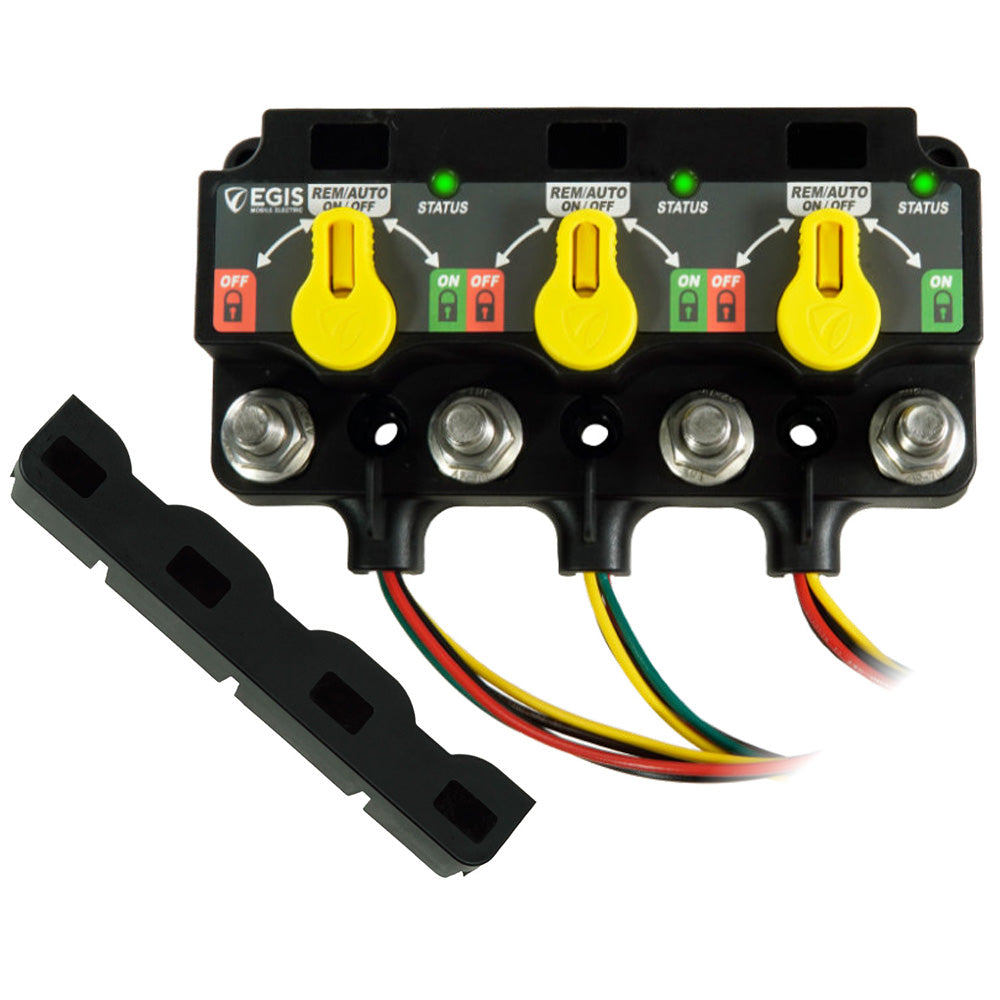

Egis Mobile Electric Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM - 8630-1535 2.71 lb

Egis Mobile Electric Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM - 8630-1535

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing Local and Remote LED Indicators Per Relay Mechanical-Only Battery Switch Option for One or Multiple Relay Positions Features: Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined. Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available. Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense. Diagnostic Feedback: Via optional external LEDs control lines and on-board LEDs for each relay Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection. Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits. Meets Stringent OEM Standards for electrical transient self-protection 4 Year Industry-Leading Warranty

Specifications

Product Resources

• Brochure Literature (pdf) Url
