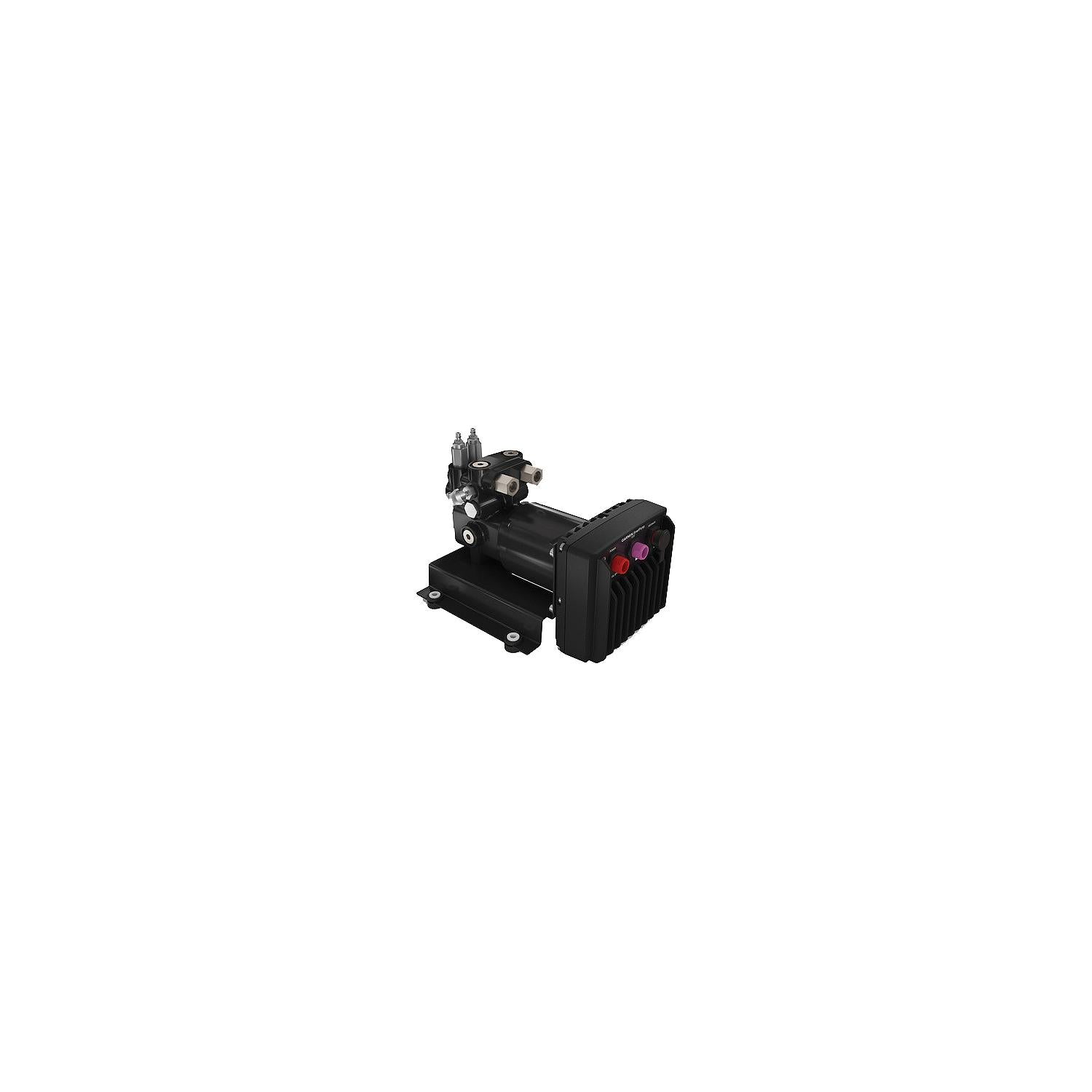

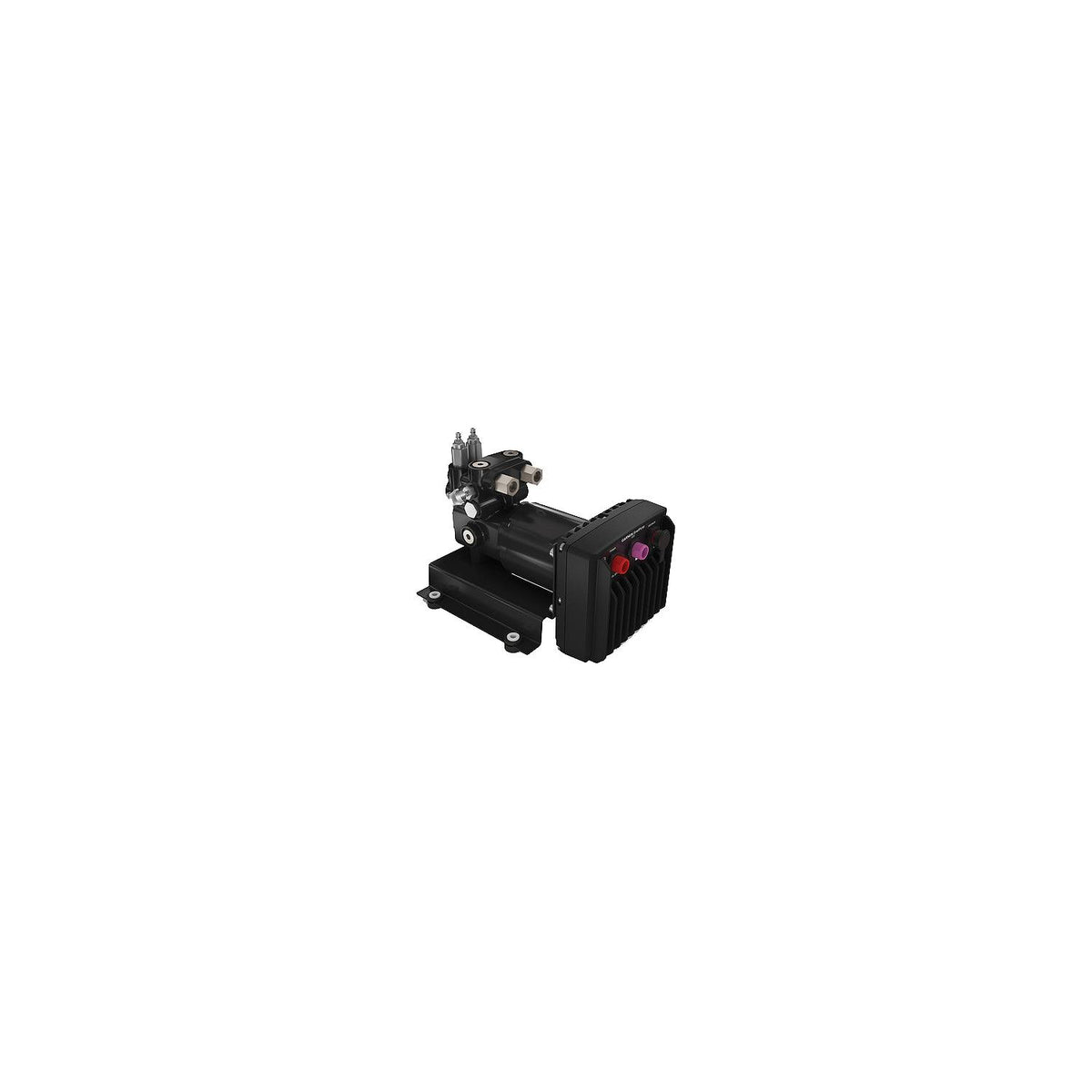

Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V 16.5 lb

Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V

Put an end to guessing which pump size will work with your particular boat. One SmartPump V2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.

Key Features:

• Dimensions (H x W x D): 6.6” x 7.5” x 10.4” (167.6 x 190.5 x 264.16 mm)
• Weight: 16.5 lbs (7.5 kg)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
• Power cable length: 9 ft (2.7 m)
• Power input: 10-30 Vdc
• Fuse: 40 A, blade-type
• Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
• Flow rate: Configurable from 0 to 2.4 L per minute
• Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

Specifications:

• Size: 6.6”H x 7.5”W x 10.4”D (168 x 191 x 265 mm)
