Garmin GPS 24xd Receiver And Antenna, For The NMEA 2000 Network, blk - 010-02316-20 2.01 lb

Product Overview

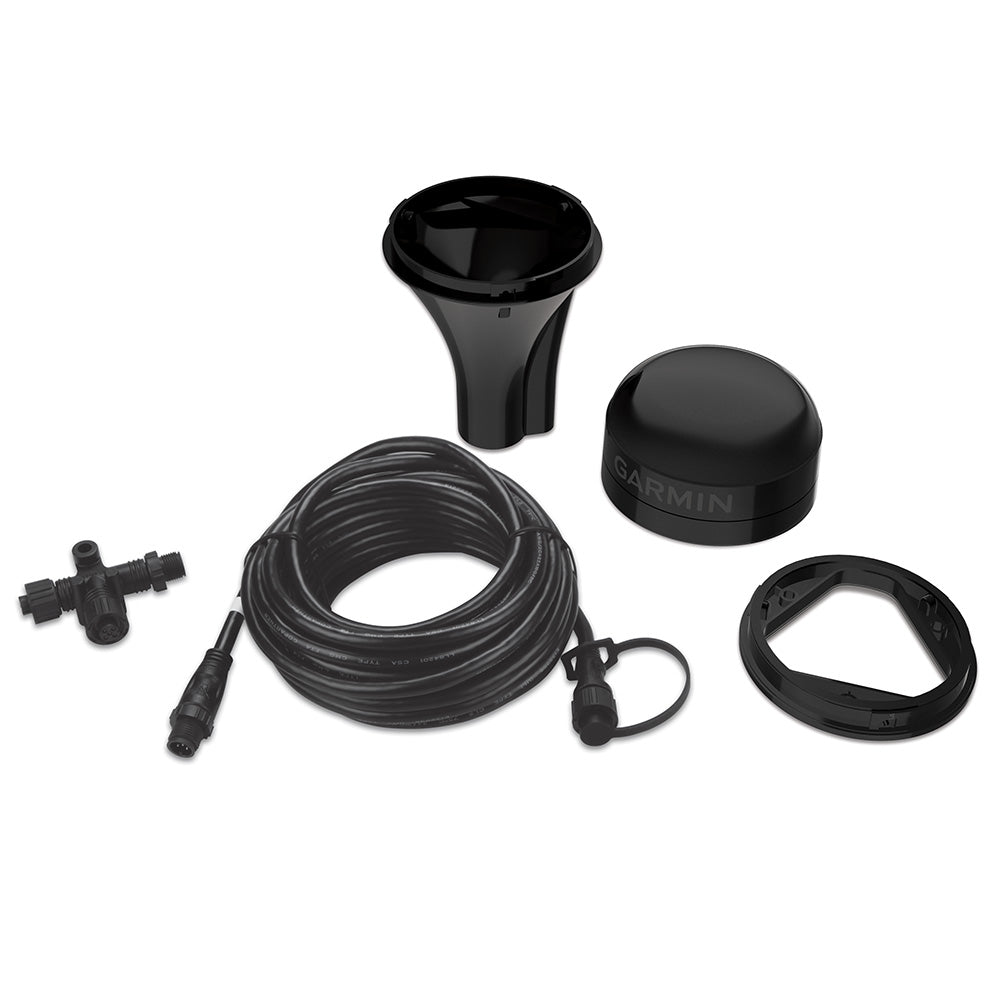

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds. Features: Navigate to more locations with expanded GNSS support Get high-sensitivity tracking with a fast GPS update rate Accurately pinpoint, regardless of speed It’s water-resistant (IPX7) to withstand the elements Install it easily with multiple mounting options The antenna is compatible with NMEA 2000® devices In the Box: GPS 24xd NMEA 2000® Pole mount Surface mount NMEA 2000 backbone/drop cable (6 meters) NMEA 2000 T-connector Documentation Specifications: Color: Black Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm) Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black Cable Length: 19 ft 8" (6 m) Temperature Range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7 Compass-Safe Distance: 5.9" (150 mm) Power Source Input: 9-32 Vdc Input Current: 150 mA at 12 Vdc NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA) Position Accuracy, Typical Marine Use: Specifications: Type: Antennas Box Dimensions: 7"H x 7"W x 7"L WT: 2.01 lbs UPC: 753759331214

Specifications

• Length: 19' 8"
• Size: 3-19/32" x 1-15/16"

Product Details

• Brand: Garmin
• Product Type: NMEA Networking
• Manufacturer Part Number: 010-02316-20
• UPC: 753759331214
• LNS Category: Electronics
• LNS Subcategory: Fishfinders, Chartplotters, Radars, Autopilots, etc.
• Dimensions: L 7.95 in × W 6.46 in × H 3.5 in
• Country of Origin: TW

Compare the manufacturer part number, dimensions, fitment, voltage, material, and included components with your application before ordering.
