HEISE LED Lighting Systems  |  Barcode: 086429368433

HEISE Infinite Series 22" RGB Backlite Dualrow Bar - 24 LED [HE-INFIN22] 7.6 lb

$434.99 $483.99
Shipping calculated at checkout.


Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

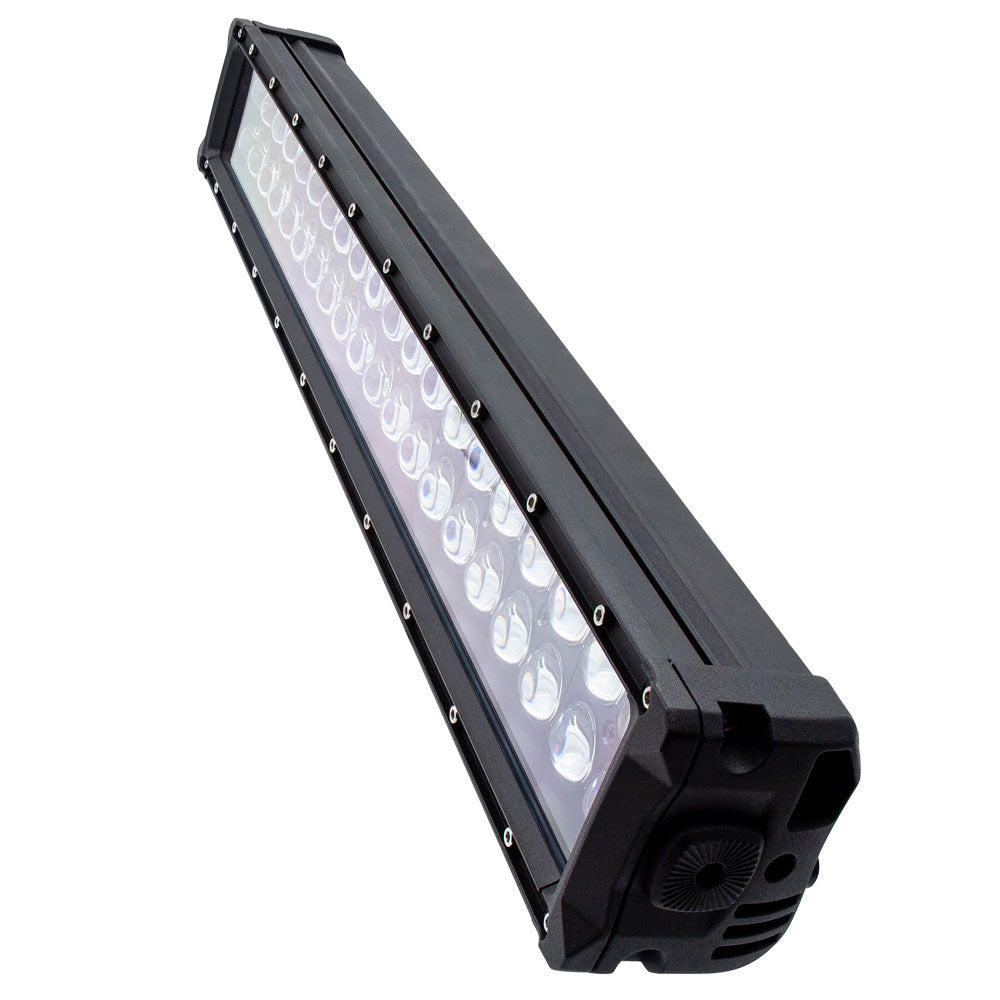

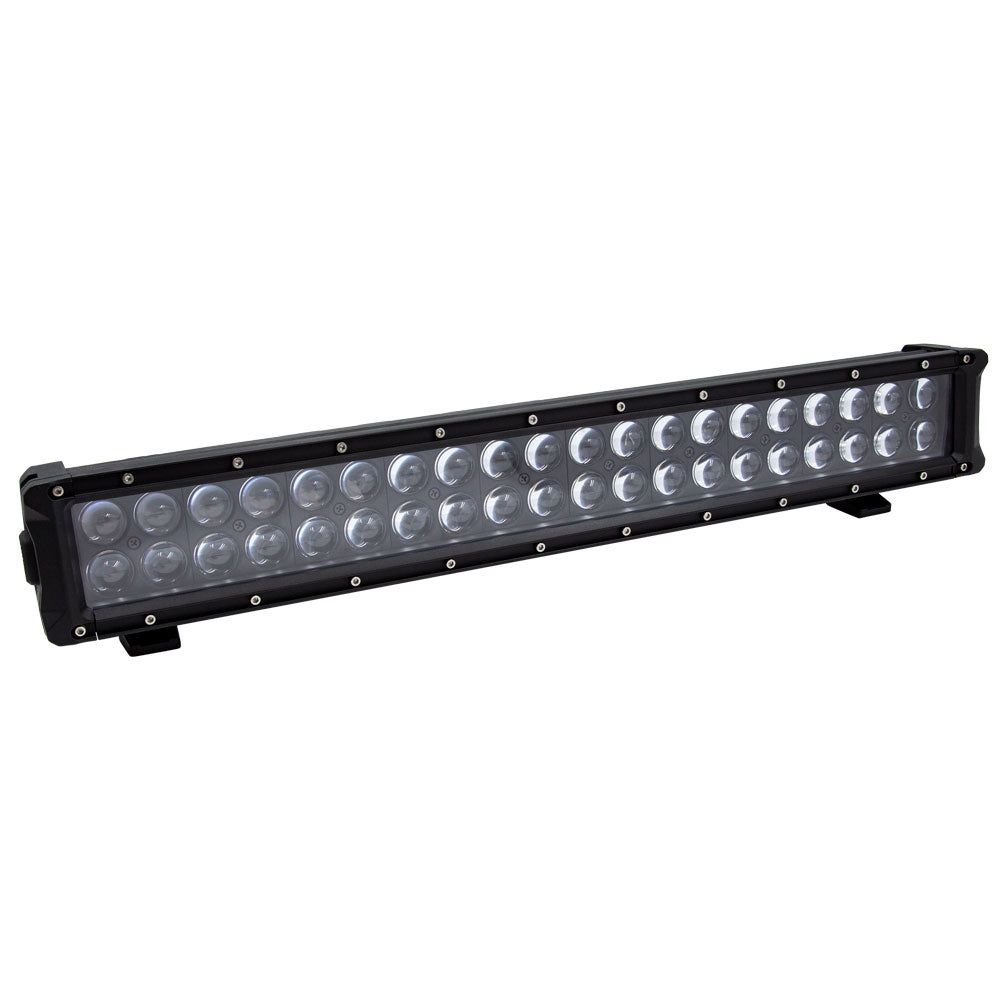

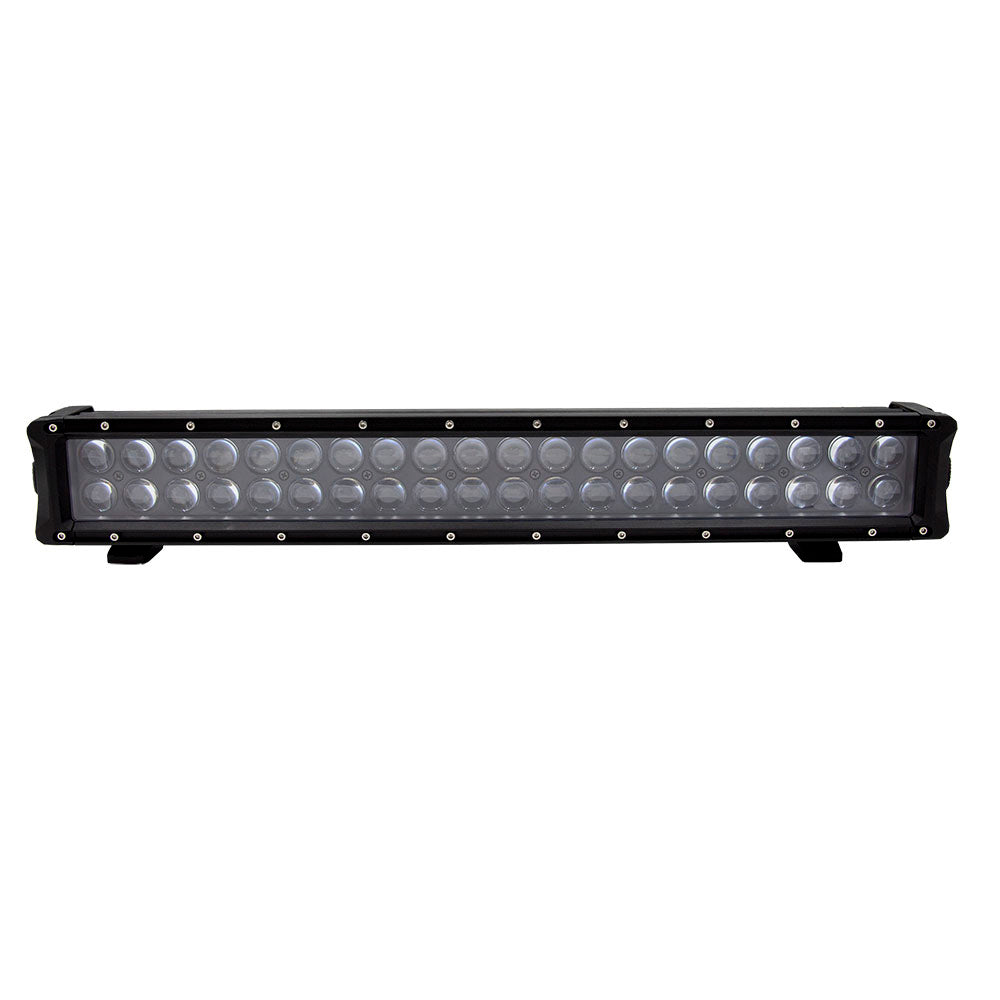

Infinite Series 22" RGB Backlite Dualrow Bar - 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise's popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

  • Input Voltage: 10-30V DC
  • Wattage: 60W
  • Raw Lumens: 7600
  • LUX @ 10M: 1150
  • Color Temperature: 6000K
  • Beam Pattern: Spot(8°)

Construction:

  • Housing Material: Die–cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Hole Dimensions: Brackets turned inward - 21.25"
  • Brackets turned outward - 23.5"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 4.8"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

Operation:

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 4.34 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot
  • Housing: Black
  • Length (Inches): 22"
  • Voltage - Input Range (Volts): 10-30v
  • Box Dimensions: 6"H x 6"W x 26"L WT: 7.6 lbs
  • UPC: 086429368433
