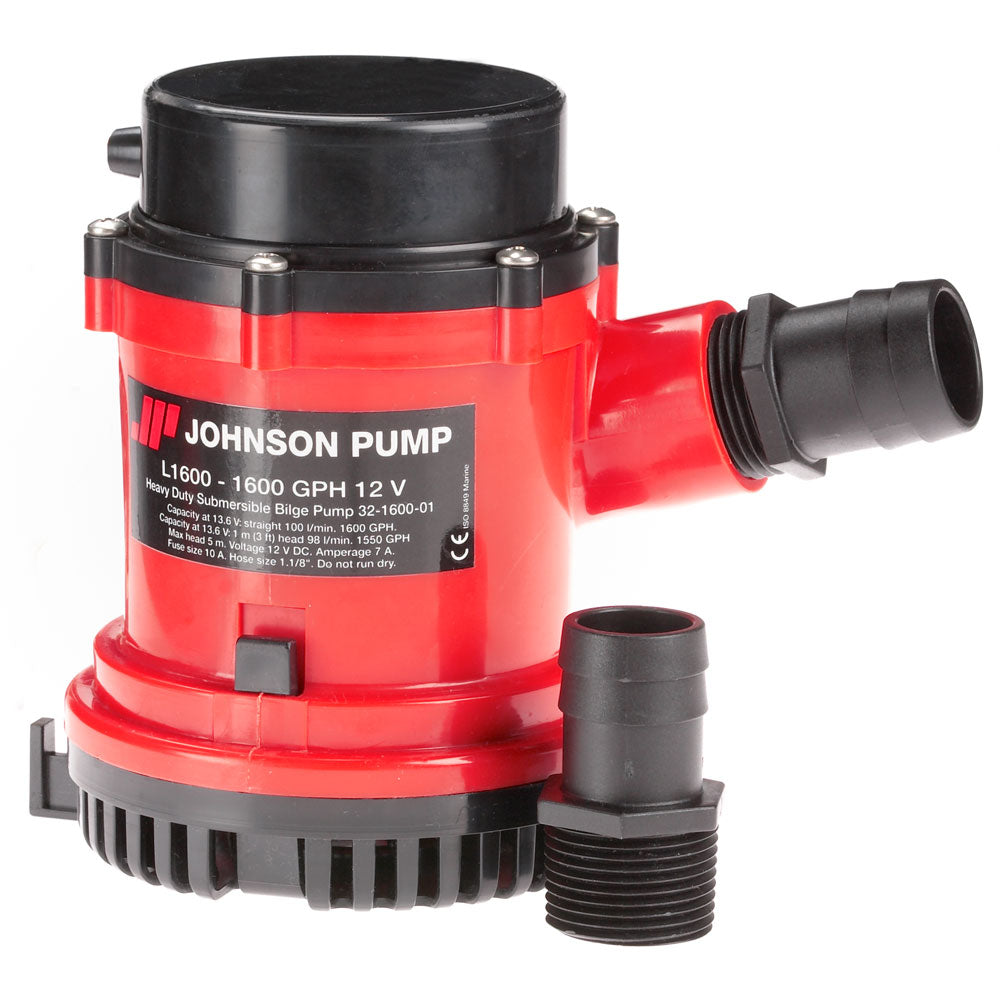

Johnson Pump 1600 GPH Bilge Pump 1-1/8" Hose 12V - 16004-00 3.53 lb

Johnson Pump 1600 GPH Bilge Pump 1-1/8" Hose 12V - 16004-00

Heavy Duty Bilge Pump 1600 series 12v : The best choice when you are looking for high performance, heavy duty pumps designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included. CE-Approved Features: Heavy duty, 12-pole double ball bearing motor Liquid cooled for extended motor life Quality engineered mechanical/lip seal ISO 8849 Marine and CE standards Easily interchangeable with most similar bilge pumps Pump body: Thermoplastic Shaft seal: Mechanical seal Shaft: Stainless steel (SS2343) Voltage: 12 V Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH Amperage: 7 A Fuse Size: 10 A Connection: 1-1/8" and 1-1/4" Shaft: SS2343 Wire size: 1.3 mm2 - 16 GA Max height 149 mm - 5.86" Weight 1.3 kg - 2.75 lbs

Specifications
