![Lectrotab 12 V Trim Tab Actuator - 23 Cable [A-BK-13]](http://www.bgamarine.com/cdn/shop/files/96254XL.jpg?v=1706432179&width=1500)

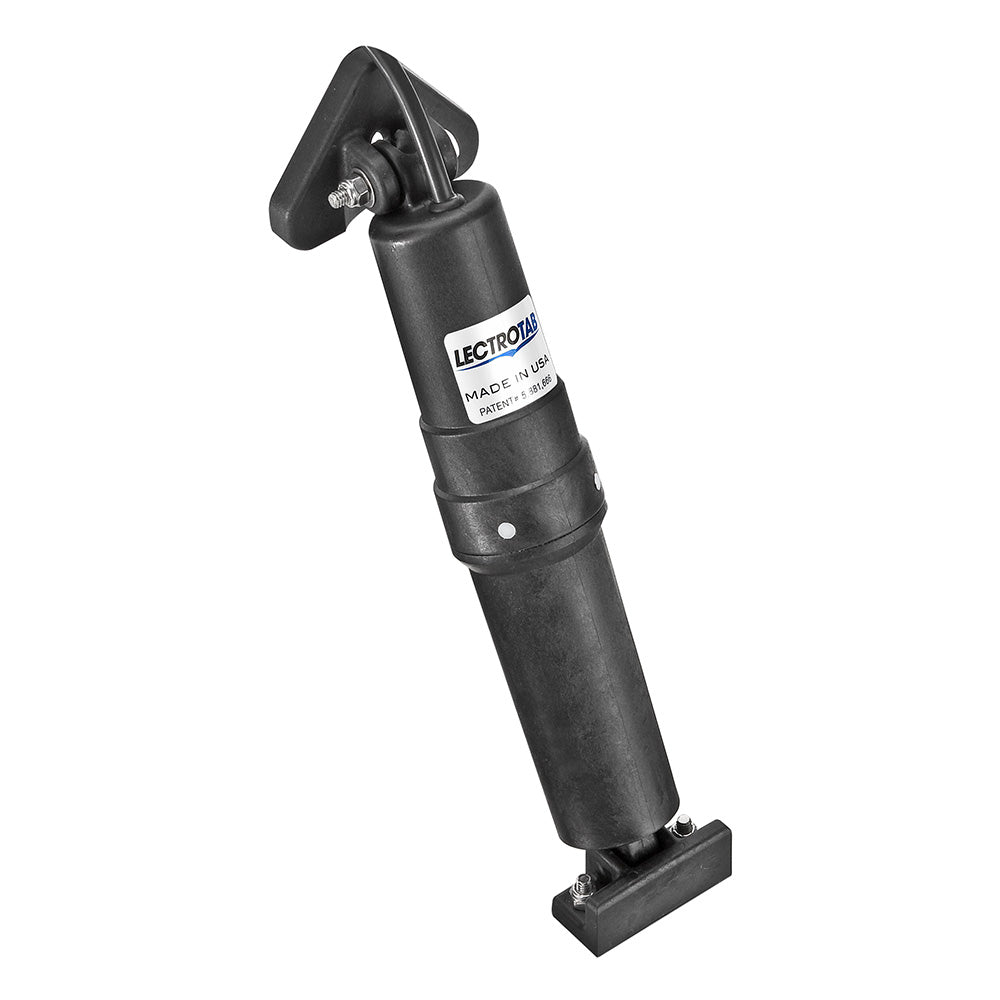

Lectrotab 12 V Trim Tab Actuator - 23 Cable [A-BK-13] 3.3 lb
Lectrotab 12 V Trim Tab Actuator - 23 Cable [A-BK-13] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
12 V Trim Tab Actuator - 23' Cable
Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. Â The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. Â The actuator assembly is packaged in a non-metallic permanently sealed housing.Â
No components need to be installed inside the boat. Â Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. Â The actuator incorporates a transom mounting bracket.Â
Features:
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Upgrades to most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- All actuators fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length  - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Upper Mounting Bracket - Standard
- Lower Mounting Bracket - Standard
*Sold as an Individual
Owner's Manual (pdf)
Brochure (pdf)
