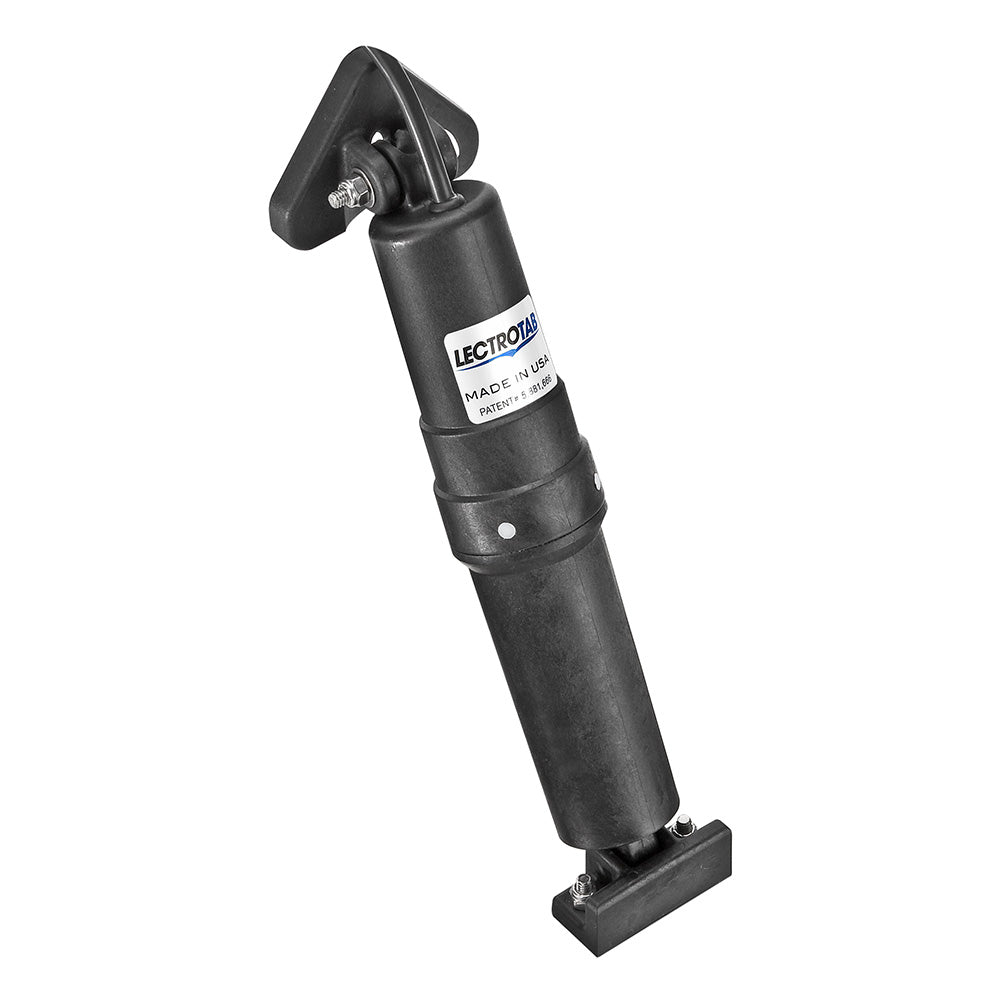

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable [A-BK-24] 4.0 lb

Standard Trim Tab Actuator - 12V - 28' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

• Actuator DC Voltage - 12V
• 28' Cable
• The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
• Utilizes an internal pressure equalization system
• Upgrades to the most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

• Model: A-BK-24
• DC Voltage: 12VDC
• Stroke Length: 2.25"/57mm
• Stroke Speed: 8 sec
• Distance from Bolt to Pin: 11.5"/292mm
• Vertical Height (Typical Installation Fully Retracted):11.875"/302mm
• Cable Length (Feet/Meter): 28'/8.5m
• Upper Mounting Bracket: Standard
• Lower Mounting Bracket: Standard
• Use Actuator with Tabs: All Tabs

*Sold as an Individual
