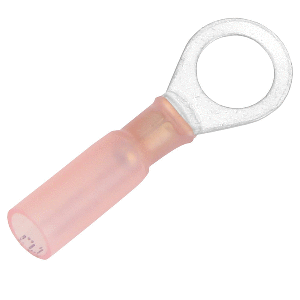

Pacer 22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack - TE18-56R-25 0.2 lb

Pacer 22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack - TE18-56R-25

22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have. Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion Conforms to automotive manufacturers’ specifications for wiring repairs Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job Compliances: UL CSA RoHS Characteristics: Shrink Ratio: Approx. 3:1 at 135 °C Operating Temp: -55 °C - 125 °C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Wire: 22-18 AWG Stud Size: 5/16” Terminal Pad Width: 0.47” Package Size: 25

Specifications

Product Resources

• Brochure Literature (pdf) Url
• Video Urls
