R & D Marine R & D Engine Mount Kit - 4 Engine Mounts f/Small Yanmar Engines (Yanmar*) - 800-YMKIT1
R & D Marine R & D Engine Mount Kit - 4 Engine Mounts f/Small Yanmar Engines (Yanmar*) - 800-YMKIT1 is backordered and will ship as soon as it is back in stock.
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
R & D Marine R & D Engine Mount Kit - 4 Engine Mounts f/Small Yanmar Engines (Yanmar*) - 800-YMKIT1 is backordered and will ship as soon as it is back in stock.
R & D Marine R & D Engine Mount Kit - 4 Engine Mounts f/Small Yanmar Engines (Yanmar*) - 800-YMKIT1

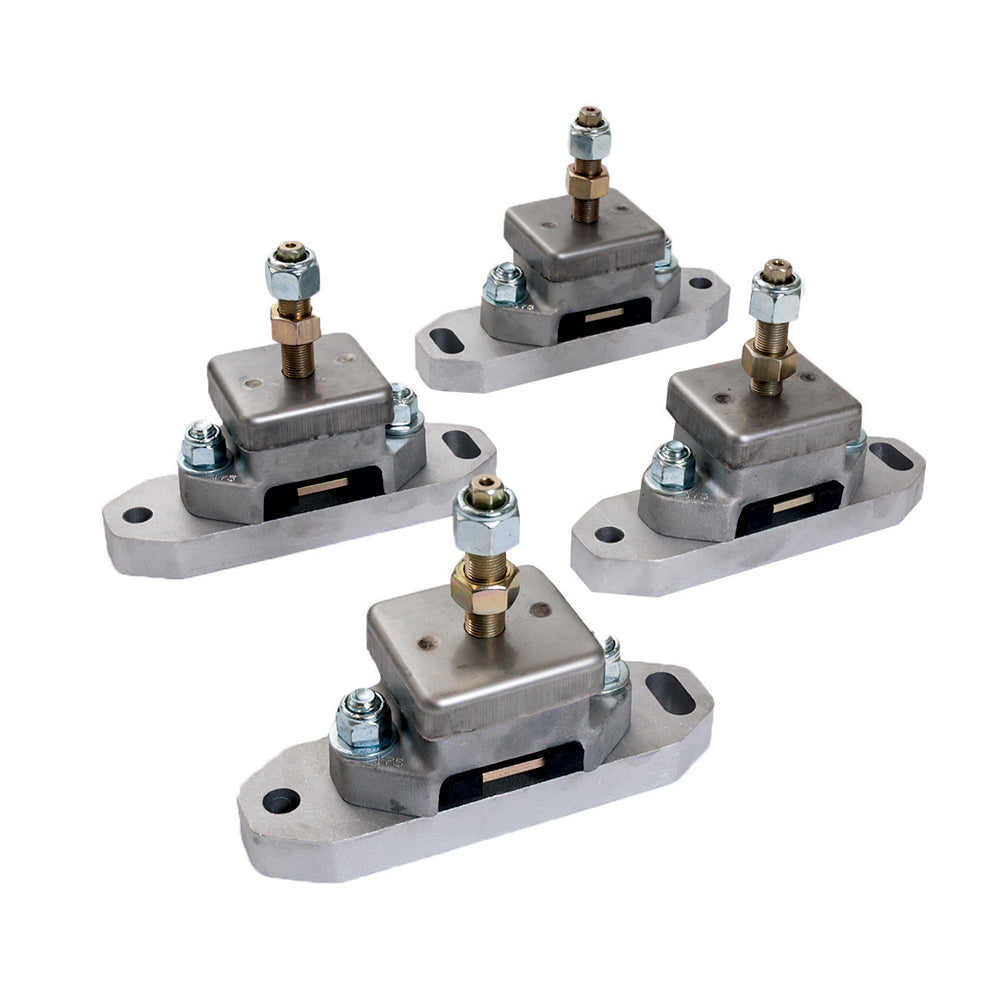

Engine Mount Kit - 4 Engine Mounts f/Small Yanmar Engines (Yanmar*) * Suitable for the Yanmar 1GM, 2GM, 3GM, 3YM, 3HM and 3JH series engines The R & D Marine Engine Mounts are designed specifically for the rigors of marine applications. The mounts are stiff enough to absorb forward and reverse propeller thrust, yet soft enough to isolate drivetrain vibrations from the hull. To help increase the longevity of the mounts, all steel parts are zinc plated and pasivated to limit corrosion. The rubber component is covered by an oil shield to protect it from petroleum based products. R & D Marine mounts are preloaded based on the combined engine and transmission weight to limit engine movement. To facilitate in the ease of installation the mounts are height adjusting and the mounting holes in the base of the mount are slotted to assist in alignment of the drivetrain. How To Select (details required): 1.Define the total weight of the engine and the transmission. 2.Determine 60% of the total weight and then divide by 2 to determine the capacity of each of the rear mounts (the mounts on the tranmission side of the engine). 3.Determine 40% of the total weight and then divide by 2 to determine the capacity of each of the front mounts (the mounts opposite the tranmission side of the engine). 4.Determine the stud necessary stud diameter and footprint of the mount. 5.Choose mount most appropriately sized for the per mount weight. When possible, choose the mount nearest the middle of the weight range. Example: Engine weight is 480lbs., transmission weight is 110lbs., footprint is 4", stud diameter is 5/8". Total weight is 590lbs. 590 x .6 / 2 = 177 lbs per rear mount. Mounts required are 800-010 590 x .4 / 2 = 118 lbs per rear mount. Mounts required are 800-037 Why R&D Marine Engine Mounts? Designed for marine use, accepts propeller and engine thrust in both directions Offers a fail safe design R & D Marine Mounts are height adjustable Pre-loaded to reduce movement Slotted holes in base to assist in alignment Mount types to fit all applications
Specifications
| Brand | R & D Marine |
|---|---|
| Manufacturer Part Number | 800-YMKIT1 |
| UPC | 015568089855 |
