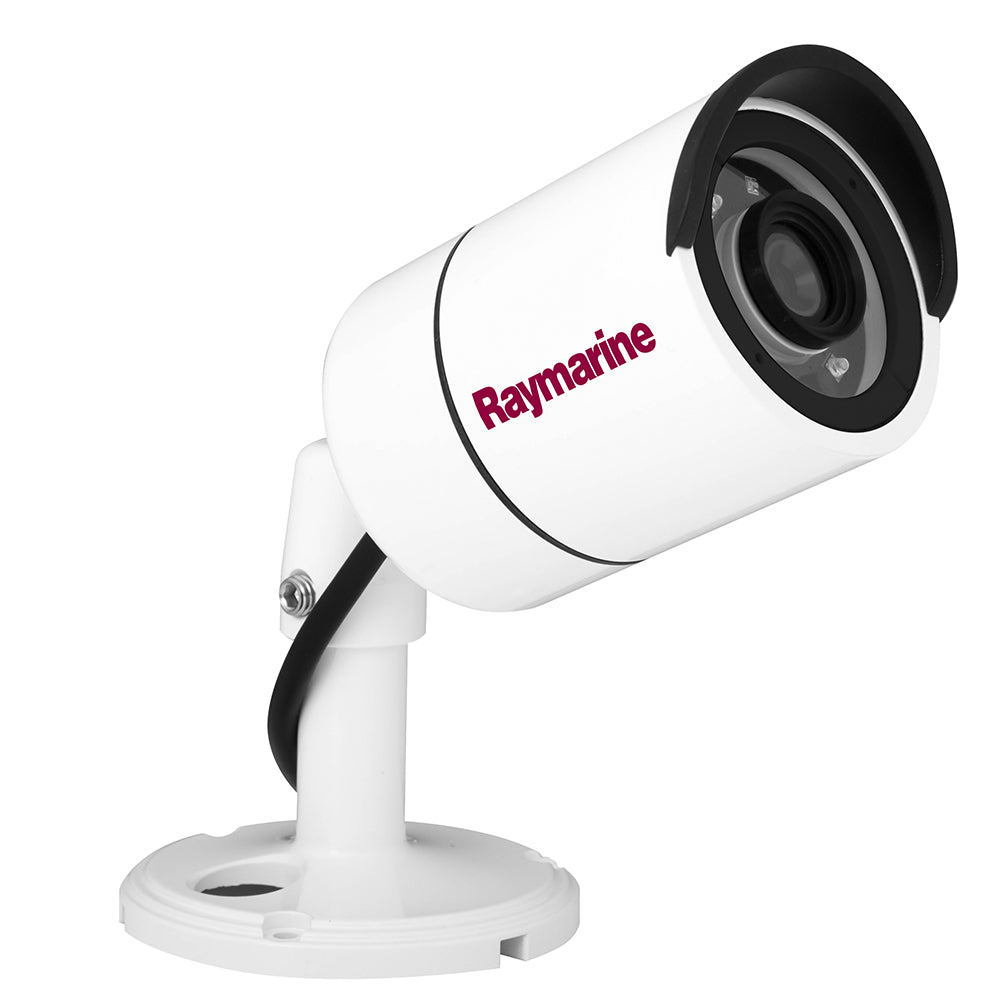

Raymarine CAM210 Day & Night IP Marine Bullet Camera - E70346 2.3 lb

Raymarine CAM210 Day & Night IP Marine Bullet Camera - E70346

CAM210 Day & Night IP Marine Bullet Camera Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. Plug and play integration with Raymarine MFD's running Lighthouse II Power over Ethernet (PoE) or direct 12V DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Specifications: CPU: 32-bit ARM9 RISC CPU up to 432MHz Flash / SDRAM: 128MB / 128MB Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor) Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel S/N Ratio: More than 50dB Minimum Illumination: 0Lux (IR On) IR Distance: 20M Day & Night: ICR Lens: 6.0mm Megapixel Board Lens Field of View: Diagonal = 63.6° +/- 3° Horizontal = 53.3° +/- 3° Vertical = 33.1° +/- 3° Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps Resolution: Up to 1920 x 1080 (Full HD) Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution Video Streaming: Support multi stream with H.264, MJPEG Adjustable frame rate CVBR/CBR in H.264 Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom Image Setting: Day & Night Auto White Balance Auto Exposure Privacy Mask Effects - Color, Sharpness, Mirror / V-Flip Security: Password protection, User access log, HTTPS encryption Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af Power Consumption: Max. 3.3W, Max. 5.3W with IR Net Weight: 900g LED's: Power, Network Connection Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket General Operation Temperature: 0°40° Celsius(32F104F) Storage Temperature: -10°50° Celsius(14F122F)

Specifications

Product Resources

• Installation Guide (pdf) Url
