Samlex America Samlex 30A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs - SEC-1230UL 7.0 lb

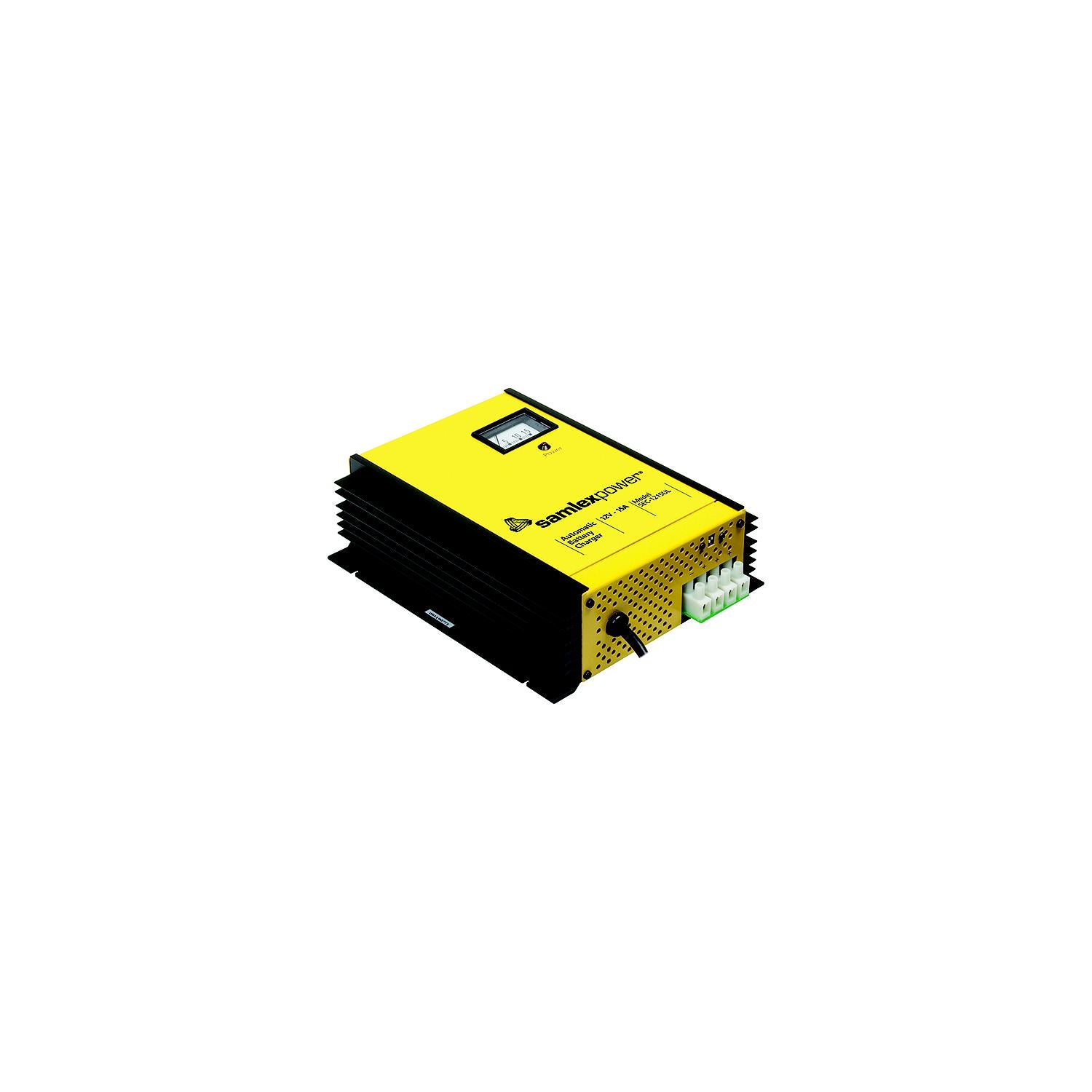

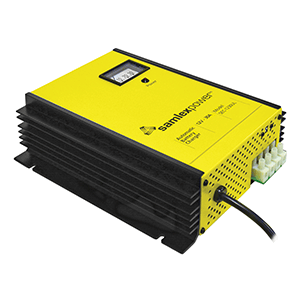

Samlex America Samlex 30A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs - SEC-1230UL

30A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks. Features: High efficiency Commercial Grade Lightweight Quiet operation Industry Proven Design – 1000s of units in operation 2 or 3 stage charging (user selectable) 120 or 230 VAC, 50/60 Hz (user selectable) Voltage meter display – Ammeter and LED power status For all types of Lead Acid batteries Charge with a battery load or stand alone Use as a power supply or DC UPS UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity Charge 3 banks of batteries at once – no isolator necessary Specifications: Input: 120 VAC 60 Hz or 230 VAC 50 Hz Output: 12 VDC Amps: 30 Amps Weight: 7 (lbs) Weight: 3.17 (kg) Dimensions: 10.5 x 8.5 x 3 (in) Dimensions: 26.7 x 21.6 x 7.6 (cm) Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B Warranty: 2 Year Limited Applications: Automotive Recreational vehicles Marine Communications sites Battery back-up systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Product Resources

• Owners Manual (pdf) Url
• Brochure Literature (pdf) Url
