Scanstrut Flip Pro Max - Dual USB-C Charge Socket - SC-USB-F3 0.2 lb

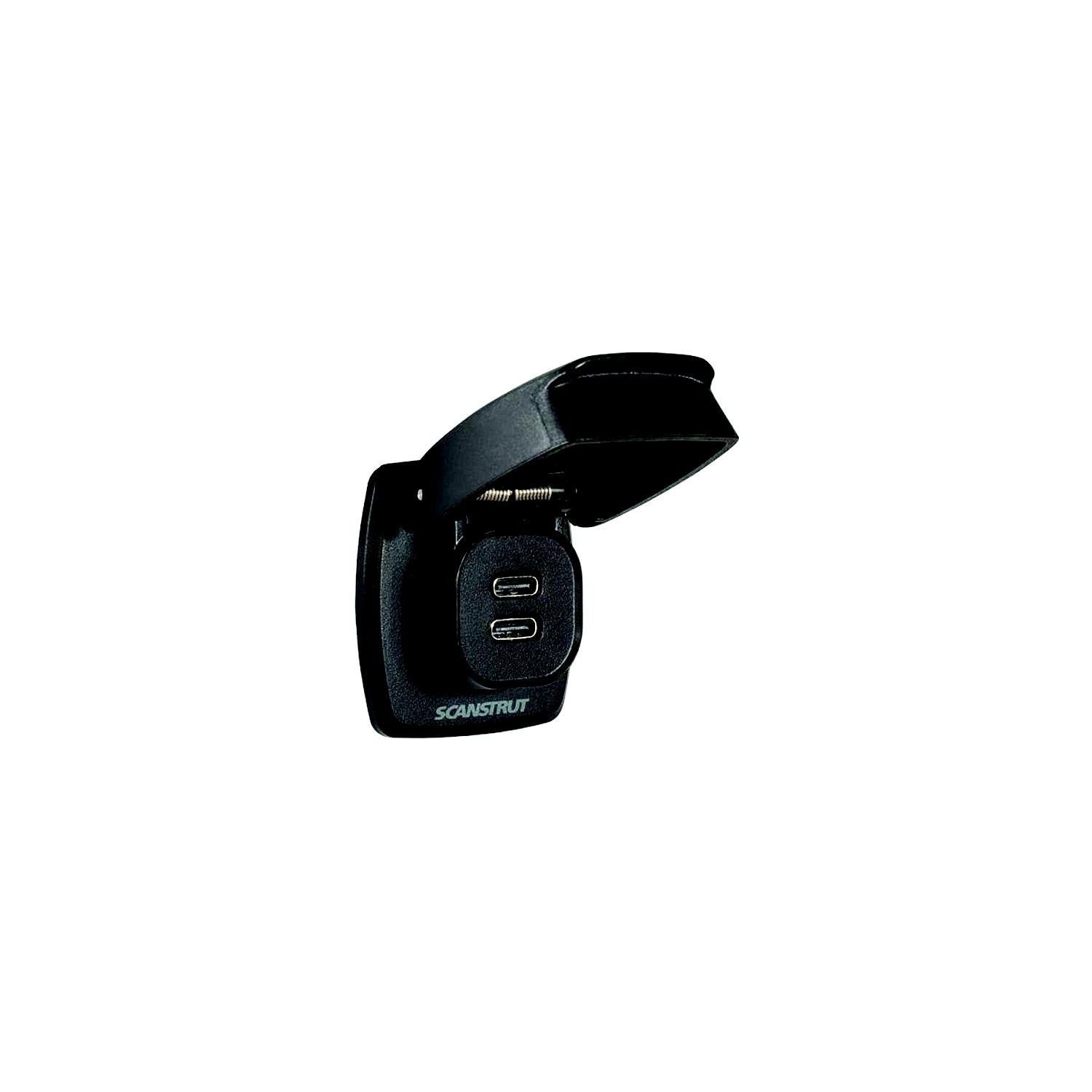

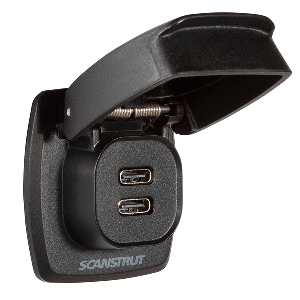

Scanstrut Flip Pro Max - Dual USB-C Charge Socket - SC-USB-F3

Flip Pro Max - Dual USB-C Charge Socket Designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops, large tablets, phones, and any other USB-C-powered devices onboard. Features: When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements Red LED running light Universal: Universal fit for any USB-C connectors Fast charge (60W max) up to 2 devices at a time Installation: Easy Install, using a Ø32mm (1.25 in.) hole saw Supplied as standard with an optional front fit bezel Marine Ready: IPX4 waterproof with the cover closed UV resistant 316 stainless steel hinge and spring Key Information: To maximize charge performance, use the cable supplied with your tablet, phone, etc. (C to C, or C-lightning) Phones charge at the same speed on either a 12V or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops Specifications: IP Rating: IPX4 waterproof when lid is closed Input Voltage: 10-30V DC (12/24V System) Input Current Max: 6A (10A fuse recommended) Standby Power Draw: 0.01W USB – C Output: 60W max on a 24V system / 36W max on a 12V system

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Installation Guide (pdf) Url
