Shadow-Caster LED Lighting Shadow-Caster Single Zone RGB(W) Controller - SCM-SZ-RGB 0.6 lb

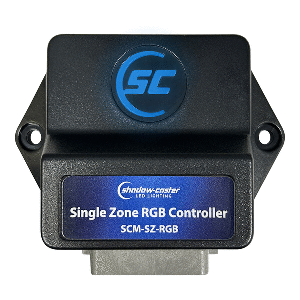

Shadow-Caster LED Lighting Shadow-Caster Single Zone RGB(W) Controller - SCM-SZ-RGB

Single Zone RGB(W) Controller The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness. The Single Zone Controller also has a built-in Shadow-NET® interface that allows the controller to synchronize color and brightness control with other Shadow-NET® devices, for example, to make Shadow-Caster® underwater lights match the color of interior RGBW lighting. Features: Shadow-NET® enabled for expansion and use with other Shadow-Caster® products The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected Supports color rotation, single-color fade, and multi-color fade Auto-detect for the white channel Integrated overcurrent protection Operate from an off/on/momentary switch or a single momentary push button Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat Specifications: Current Draw: 10A max Hosing & Connector IP Rating: IP67 Voltage: 12V/24V operation compatible Dimensions: 3.5” x 2.9” x 1.2” (88 x 72.4 x 30.6mm)

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Owners Manual (pdf) Url
• Video Urls
