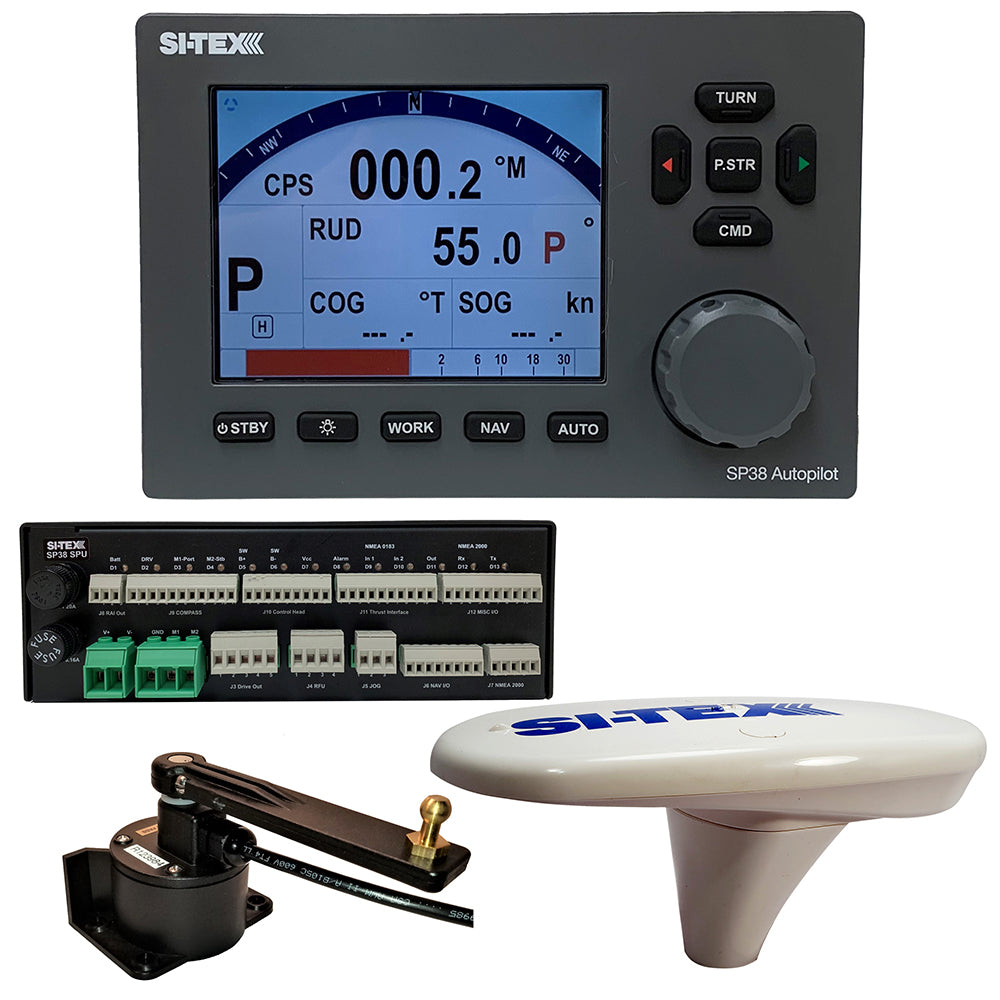

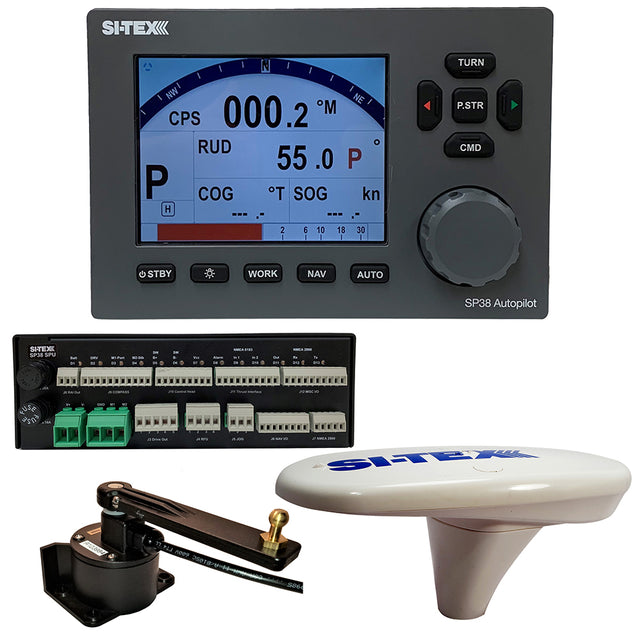

SI-TEX SP38-18 Autopilot Core Pack Including Compact GPS Compass & RotaryFeedback, No Pump 23.1 lb

SI-TEX SP38-18 Autopilot Core Pack Including Compact GPS Compass & RotaryFeedback, No Pump

SP38-18 Autopilot Core Pack Including Compact GPS Compass & Rotary Feedback, No Pump Features: IST – Intelligent Steering Technology provides superior vessel steering capability ADAPTIVE steering for sea conditions and varying vessel speeds AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration NMEA 2000, ETHERNET, and NMEA 0183 interface Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s WORK Mode suitable for Fishing Boats, Towboats and Workboats PRC- Proportional Rate Control feature provides gentle smooth steering response Multi-Station capability with security station lock SUNLIGHT viewable Color 5.7” LCD display NAV Mode provide adaptive precise track steering ALC – Automatic Leeway Compensation for Drift, Tide & Wind Fully compatible with onboard instruments and steering systems Optional Z-Drive interface allows 360 Azimuth drive interface Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc. Standard with Flush Mount kit, Optional Swivel mount bracket IP67 Waterproof – Control Head, TS4, NF4 and WS4 RoHS & CE compliance for EMI and RFI immunity Additional Features: 9 level backlit LCD display LCD Display switches to Red Night Palette to protect Operators night vision Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications Multiple steering parameters for Fast cruise, Slow cruise and Work modes Simple to use course knob with mechanical detent Multi-station capability with security station lock Automatic trim Adjustable yaw, turn rate and rudder settings PORT and STBD dodge buttons for collision avoidance Output for optional analog rudder angle indicator, up to 4 stations Fully compatible with onboard NMEA N2K instruments and most steering systems Specifications: Operating Voltage: 10 to 30 VDC Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps Network: NMEA 2000 & Ethernet Navigational Interface: NMEA 0183 input/Output NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec) Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass Course Resolution: 1° Course Detection: 0.5°

Specifications

Product Resources

• Quick Guide Literature (pdf) Url
• Installation Guide (pdf) Url
• Video Urls
