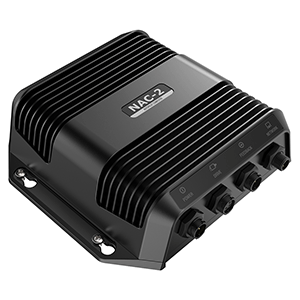

Lowrance Nac-2 Autopilot Computer Replaces P/n 941-00013249001 - 000-13249-001 3.75 lb

Product Overview

NAC-2 Low Current Course Computer The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak). Features: Reliable autopilot performance based on Simrad Continuum™ steering technology Recommended for boats up to 10M (33') in length Output of 8 Amps continuous, 16 Amps peak Clutch output (3 Amps maximum) Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Supports Simrad RF25 rudder feedback units Plug-and-play connectors for easy installation NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays Specifications: Type: Parts Box Dimensions: 3"H x 10"W x 13"L WT: 3.75 lbs UPC: 9420024154380 Owner's Manual (pdf)

Product Details

• Brand: Lowrance
• Product Type: Autopilot Accessories
• Manufacturer Part Number: 000-13249-001
• UPC: 9420024154380
• LNS Category: Electronics
• LNS Subcategory: Fishfinders, Chartplotters, Radars, Autopilots, etc.
• Country of Origin: MX

Compare the manufacturer part number, dimensions, fitment, voltage, material, and included components with your application before ordering.
