Veratron  |  Barcode: 7640178729803
Sold out
10% off

Veratron LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH - B00042502 1.1 lb

$336.15 $373.50
Shipping calculated at checkout.

Safe, secure checkout with flexible payment options

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

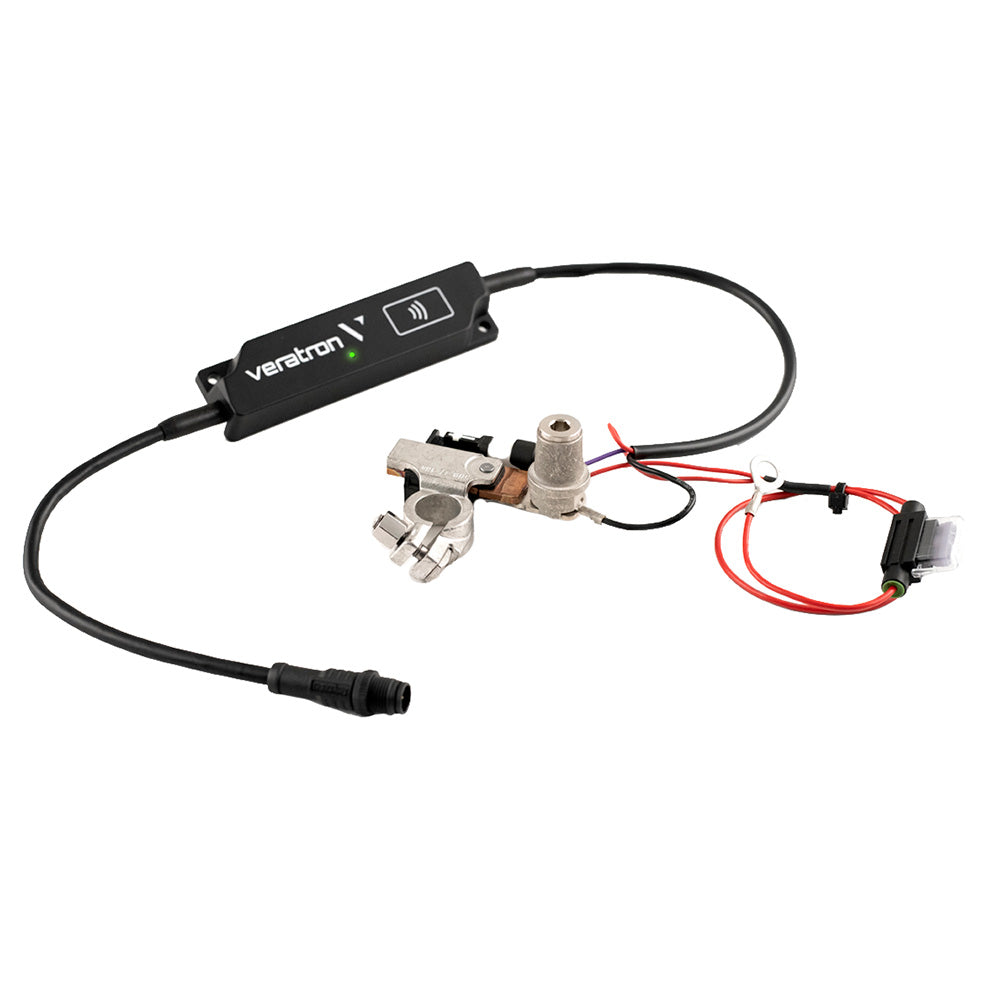

Veratron LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH - B00042502

LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH Easily installed LinkUp gateway modules replace the original wiring, delivering power to the LinkUp device and sensor from the NMEA 2000 backbone while still compliant with the NMEA 2000 certification. Thanks to their passive wireless receiver, the configuration is done in a snap using your mobile device, and the LinkUp Configurator app is available for Android and iOS devices. The sensor parameters are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download. Features: NMEA 2000® certified Wireless configuration through companion mobile App Status LED Plug-and-Play installation and configuration Specifications: Operating voltage - 6-18V Permanent load current - ±200A Maximum current - ±1500A Maximum battery capacity - 500Ah Threaded GND bolt - M6 Power consumption - ≤ 15 mA (normal mode) Output signal - NMEA 2000® Dimensions - 125mm x 32mm (+cables) Protection class - IP X9/K (LinkUp) IP6K7 (Sensor) Operating temperature - -40°C to +115 °C Flammability - UL94 Housing material - PC-FR Compliance - CE, UKCA, Reach, RoHS, ISO8846:1990 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Brand Veratron
Manufacturer Part Number B00042502
UPC 7640178729803
